Operating Rear Window Wiper and Washer

PY15240
PY15240-UN-02JUN12

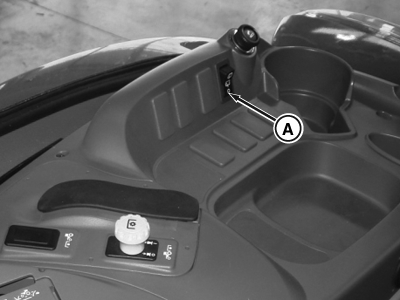

A - Rear Window Wiper/Washer Switch

Switch (A) has three positions:

  • Top WASH position—Hold switch down to activate washer.
  • Center ON position—Rear window wiper is activated.
  • Bottom OFF position.

CP00834,0001E70-19-20160504
