Operate Transmission—PR

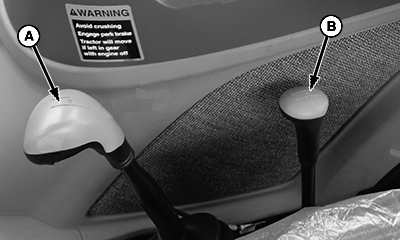

CPA0002723-UN-05MAY16

without High/Low, Cab

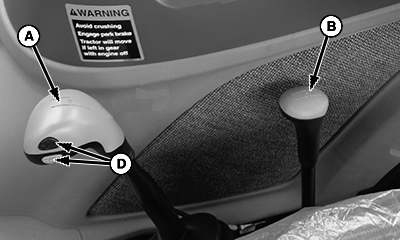

CPA0002722-UN-05MAY16

with High/Low, Cab

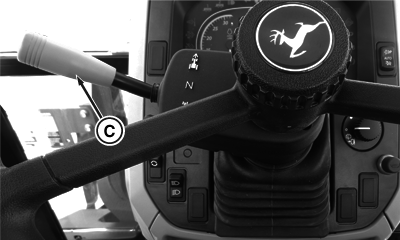

PY21082-UN-08MAY15

PowrReverser Lever, Cab

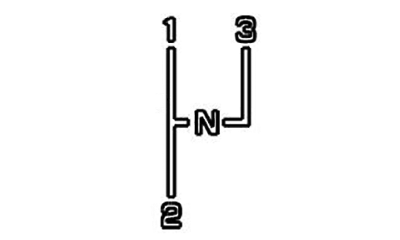

CPA0002724-UN-06MAY16

Gear Shift Pattern

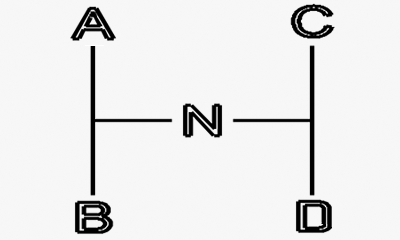

CPA0002725-UN-06MAY16

Range Shift Pattern

A - Gear Shift Lever

B - Range Shift Lever

C - PowrReverser Lever

D - High/Low Switch

12 X 12 Transmission

Range shift lever (B) provides 4 ranges: A, B, C and D.

Gear shift lever (A) provides 3 speeds: 1st, 2nd and 3rd.

Using range and speed shift levers in different combinations, 12 forward speeds and 12 reverse speeds can be obtained.

Gear shift lever (A) must be in neutral, “N”, for the engine to be started.

PowrReverser lever (C) provides travel direction (forward or reverse).

24 X 12 Transmission

Range shift lever (B) provides 4 ranges: A, B, C and D.

Shift lever (A) provides 3 speeds: 1st, 2nd and 3rd.

High/low gear shift lever switch (D) is used to obtain the higher or lower ground speeds.

Using range shift lever, speed shift lever and high/low speed split-shift switch in different combinations, 24 forward speeds and 12 reverse speeds can be obtained.

Gear shift lever (A) must be in neutral, “N”, for the engine to be started.

PowrReverser lever (C) provides travel direction (forward or reverse).
