Check Neutral Start System—PR

PY21085
PY21085-UN-08MAY15

PY15258
PY15258-UN-14AUG12

OOS

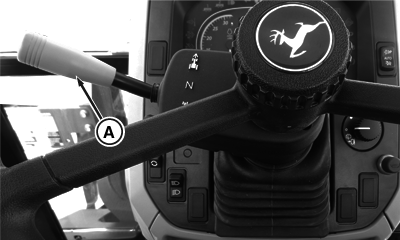

A - PowrReverser Lever

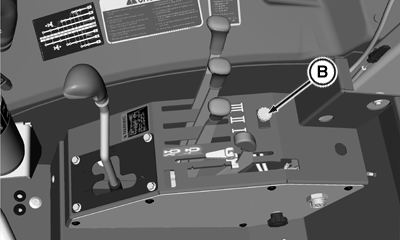

B - PTO Control Switch

Service Interval—250 Hours


Transmission Control

  1. Make sure everyone is clear of tractor.

  2. Fully depress clutch and brake pedals.

  3. Move PowrReverser lever (A) to FORWARD or REVERSE position.

  4. Start engine. If engine starts in either of these positions, neutral start system should be repaired. See your John Deere dealer immediately.

Engine should start with lever in NEUTRAL position only.


PTO Switch

  1. Fully depress clutch and brake pedals.

  2. Pull PTO Switch (B) upward to ENGAGED position.

  3. Start engine. PTO should NOT ENGAGE until the PTO Switch (B) is cycled off and then back on. If PTO engages when engine is started and switch engaged, this should be inspected. See your John Deere dealer immediately.

NOTE: Engine should start regardless of PTO switch position.

CP00834,0001E83-19-20160506
