Charge Battery

TS204
TS204-UN-15APR13

PY15286
PY15286-UN-02JUN12

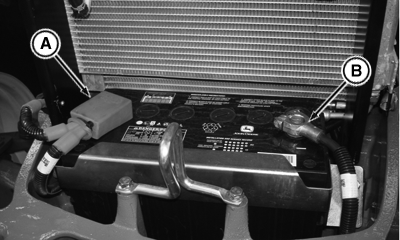

A - Positive (+) Battery Terminal

B - Negative (-) Battery Terminal

Service Interval—As Required

CAUTION: Gas given off by battery is explosive. Keep sparks and flames away from battery. Before connecting or disconnecting a battery charger, turn charger off. Make last connection and disconnection at a point away from battery.

  1. With charger off, attach positive battery charger lead to positive (+) battery terminal (A). Attach negative charger lead to tractor frame, away from the battery.

  2. Follow the instructions provided by the charger.

  3. To disconnect battery charger, turn charger off. Remove negative charger lead first, then positive lead.

CP00834,0001EA5-19-20160511
