Replace Headlight Element

Service Interval—As Required

  1. CAUTION: To guard against personal injury, wear protective eyeglasses and clothing when handling bulb. Turn power off when installing and before removing bulb. Dispose of bulb with care.

    Allow bulb to cool before removing.

    Read and follow all bulb manufacturer's installation instructions.

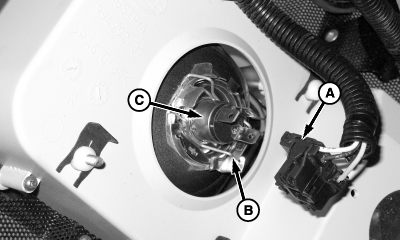

    P14574
    P14574-UN-05NOV07

    A - Connector

    B - Clip

    C - Bulb

    Raise hood.



  2. Remove connector (A).

  3. Remove retaining clip (B).

  4. Remove and discard old bulb (C).

  5. Insert new bulb and close retaining clip.

  6. Reattach connector (A) to new bulb and close hood.

CP00834,0001EA8-19-20160511
