Replace Roof Hazard Light Bulb—Cab

Service Interval—As Required

NOTE: Procedure is the same for all warning lights on machine.

1.
   LV5559-UN-29NOV00

   Left Rear


   P14710-UN-05NOV07


   P14711-UN-05NOV07

   A - Socket Head Screws

   B - Lens

   C - Bulb Socket

   D - Bulb

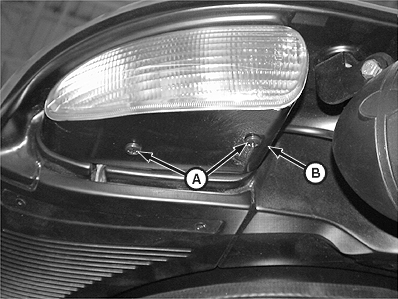

   Remove socket head screws (A) and lens (B).

---

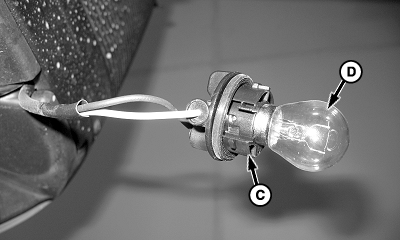

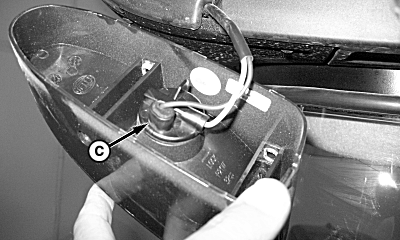

2. Twist and pull to remove bulb socket (C) from lens.

3. Gently push and turn bulb (D) to remove.

4. Install new bulb.

5. Reinstall bulb sockets to lens.

6. Inspect rubber seal for cracks that may cause leaks. Replace if necessary.

7. Reinstall lens (B) with previously removed socket head screws (A).
