Connect and Operate Single-Acting Cylinder

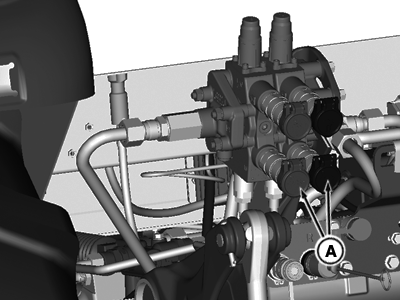

PY13317
PY13317-UN-09JUL15

Two-Section Valve

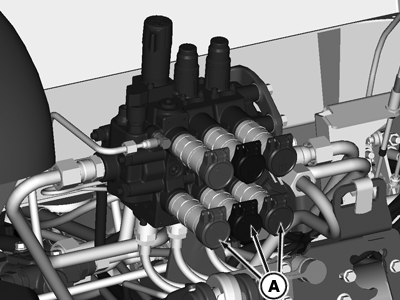

PY13316
PY13316-UN-09JUL15

Three-Section Deluxe Valve (If Equipped)

A - Top (extend) Couplers

Single-acting cylinder should only be connected to EXTEND couplers (A).

IMPORTANT: Volume of oil required to extend cylinder will lower transmission-hydraulic oil level. With cylinder fully extended, check oil level and fill to proper level. (See Check Transmission-Hydraulic Oil Level in Transmission Maintenance section.)

Pull SCV control lever back to pressurize and extend single-acting cylinder.

Push SCV control lever full forward to “float” position to retract cylinder.

CP00834,0001EB4-19-20160512
