Service Daily Before Start-Up

IMPORTANT: Do not operate when oil level is below lower mark on dipstick.

If operating machine for an extended period in an off level condition, engine oil must be maintained at the FULL mark to avoid damage.

RXA0146068-UN-27OCT14

PY21076-UN-07MAY15

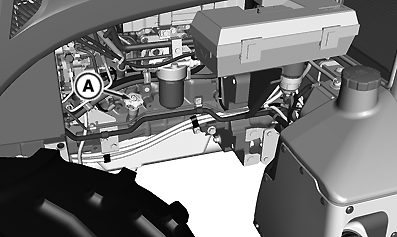

A - Engine Oil Filler Cap/Dipstick

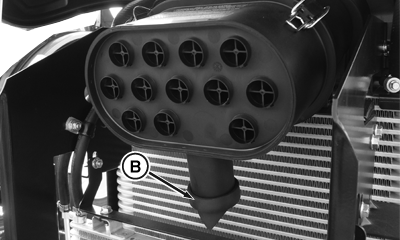

B - Dust Unloading Valve

1. Check engine oil level. Wipe dipstick (A) off and reinsert it fully. Remove and check oil level. Do not operate when oil level is below lower mark on dipstick. Add seasonal viscosity grade oil through filler hole.

2. Check hydraulic oil level through sight glass. (See Check Transmission-Hydraulic Oil Level in Transmission Maintenance section.)

3. Drain water and sediment from fuel filters. (See procedure in Air Intake, Fuel, Coolant, and Exhaust Maintenance section.)

4. Check level in coolant overflow reservoir. (See Check Coolant Level in Air Intake, Fuel, Coolant, and Exhaust Maintenance section.)

5. Clean air filter dust unloading valve. (See procedure in Air Intake, Fuel, Coolant, and Exhaust Maintenance section.)

6. If operating in extremely wet or muddy conditions, lubricate the following with multipurpose grease on a daily basis:

   • Front axle pivot pin
   • Steering spindles and cylinder ends (adjustable front axle)
   • Rear axle bearings
   • MFWD shaft
   • Front wheel bearings (2WD)
   • Hood latch



7. Raise hood. Clean dust unloading valve (B) by squeezing flexible rubber lips together to release any dust buildup. If necessary, remove and clean out any heavy buildup. Replace if damaged. Lower hood.
