Change MFWD Axle Wheel Hub Oil

P14517
P14517-UN-30OCT07

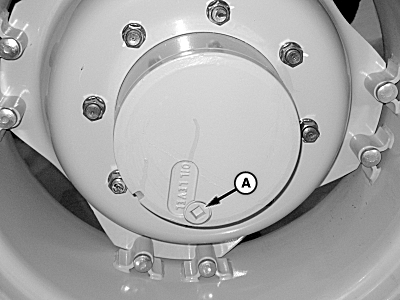

A - Drain/Fill Port Plug

Service Interval



Initial—100 Hours



Regular—1000 Hours

  1. NOTE: Approximate wheel hub oil level is 0.8 L (0.85 qts).

    Park tractor on level surface.

  2. Rotate wheel until drain/fill port plug (A) is at bottom of hub.

  3. Remove plug and drain oil.

  4. After oil has drained, rotate wheel until drain/fill port is positioned horizontally.

  5. Add oil until level is just below edge of hole. John Deere Standard JDM J20C oil is recommended. (See MFWD Axle and Wheel Hub Oil in Fuels, Lubricants, and Coolants section.)

  6. Apply pipe sealant with TEFLON, or equivalent, to threads of plug.

  7. Install plug and tighten to specifications.

    ItemMeasurementSpecification
    Plug-to-HubTorque150 N·m (110 lb-ft)

  8. Repeat procedure on opposite wheel hub.
