Lubricate Operator's Seat Slide Rails (OOS)

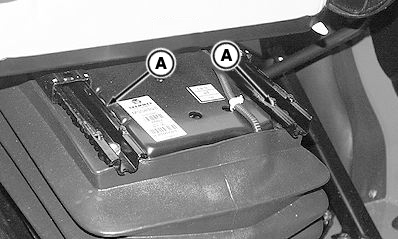

PY13405-UN-10JUL15

A - Slide Rails

Service Interval—As Required

NOTE: This procedure is only necessary after pressure washing.

Move seat full forward and apply multipurpose grease to slide rails (A).
