Operate Key Switch

P17628-UN-17APR15

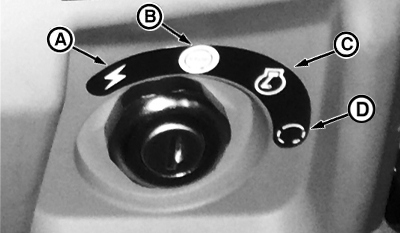

Key Switch

A - Accessory Position

B - Stop Position

C - Run Position

D - Start Position

Accessory Position (A): Push in and turn key to ACCESSORY position to power electrical functions.

Stop Position (B): Turn key to STOP position to turn off electrical accessories and to shut down engine.

Run Position (C): Turn key to RUN position and check gauges and indicator light before advancing to START position. If temperature is below 5°C (41°F), refer to Cold Weather Start in this section.

Start Position (D): Turn key to START position to crank and start engine. Key returns to RUN position when released.
