Operate Rotating Beacon Light

CPA0002737
CPA0002737-UN-16MAY16

PY21083
PY21083-UN-08MAY15

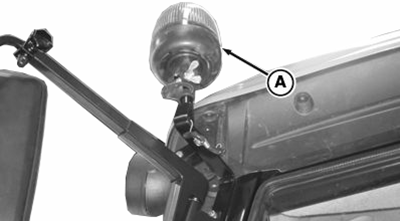

A - Light

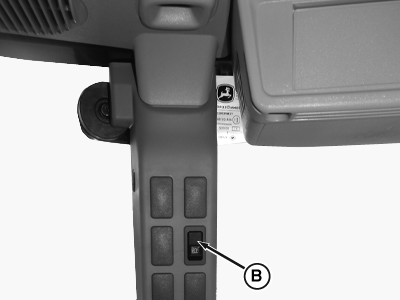

B - Switch

Depress switch (B) to activate light (A).

To remove light for storage or clearance:

  1. Loosen wing nut and lift light from tube.

  2. Install cap on tube end to protect light socket.

CP00834,0001F25-19-20160517
