Lubricate PTO Stub Shaft

TS1644-UN-22AUG95

P15236-UN-06FEB08

LV12604-UN-26APR05

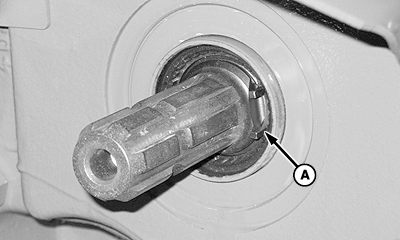

A - Snap Ring

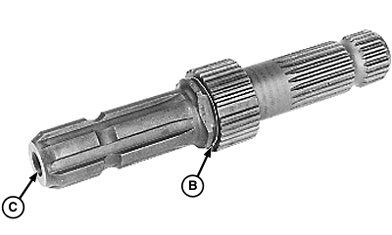

B - Stub Shaft

C - Bore

1. Place tractor in PARK position and SHUT OFF engine. Remove key.

2. IMPORTANT: If the 21-splined end (1000 rpm) needs to face out, the snap ring can be assembled after the PTO shaft is inserted PTO housing.

   If the 21-splined end (1000 rpm) needs to face out, the snap ring can be assembled after the PTO shaft is inserted PTO housing.

   Remove the snap ring (A) with the PTO shaft (B). If the 6-splined end is facing out, align the snap ring ends with the access flat first.

3. Clean PTO shaft thoroughly and coat with grease. Make sure end bore (C) is clean.

4. Insert PTO shaft back into PTO housing:

   • If the 6-splined end (540 rpm) needs to face out, put the snap ring in the groove of the shaft. Align the ends to the access flat before the shaft is in PTO housing. Move the shaft with the snap ring in PTO housing until the snap ring snaps into the groove.
   • If the 21-splined end (1000 rpm) needs to face out, the snap ring can be assembled after the PTO shaft is inserted PTO housing.
