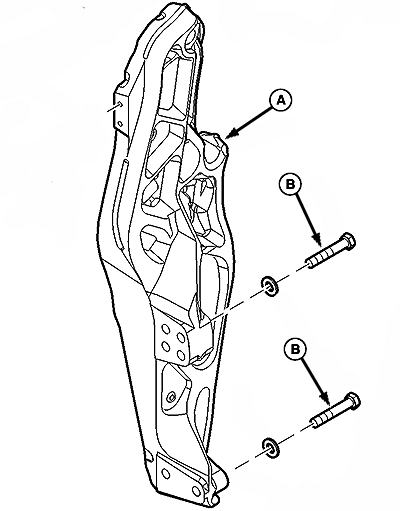

Front Loader Mounting Bracket

CPA0002792-UN-25MAY16

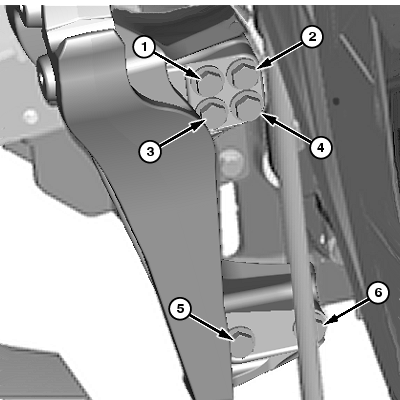

Front Loader Bracket

W22979-UN-14SEP12

Torque Sequence (Right-Hand Side)

A - Front loader bracket

B - Cap Screw (6 used)

A front loader checked and approved by John Deere is available for purchase.

Using a suitable hoist, position the front loader brackets on the main frame of the tractor and tighten the screws to the specified torque.

Item	Measurement	Specification
M20 Cap Screws	Torque	580 N·m 428 lb·ft

Check the torque periodically according to tractor and loader maintenance information.
