Right-Hand Console Controls

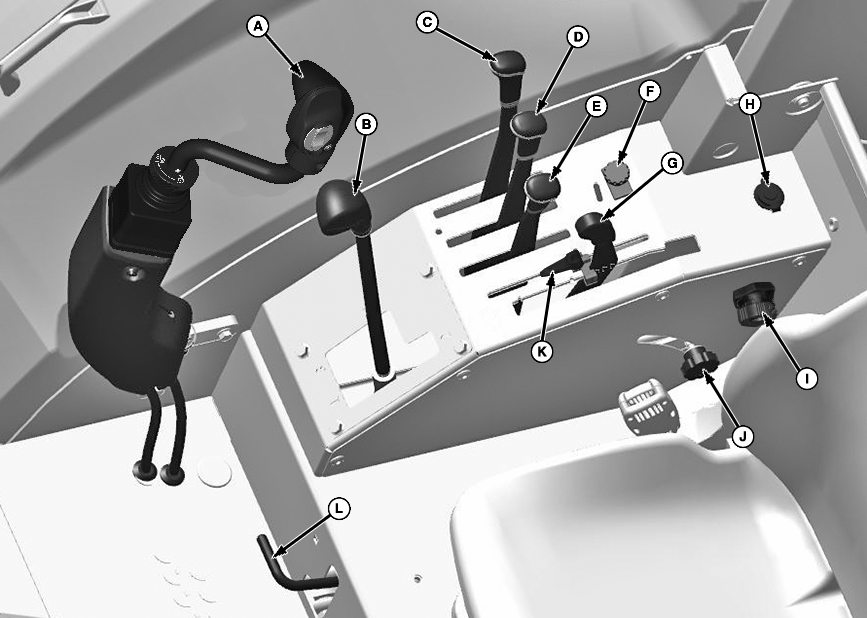

CPA0002728-UN-16MAY16

OOS

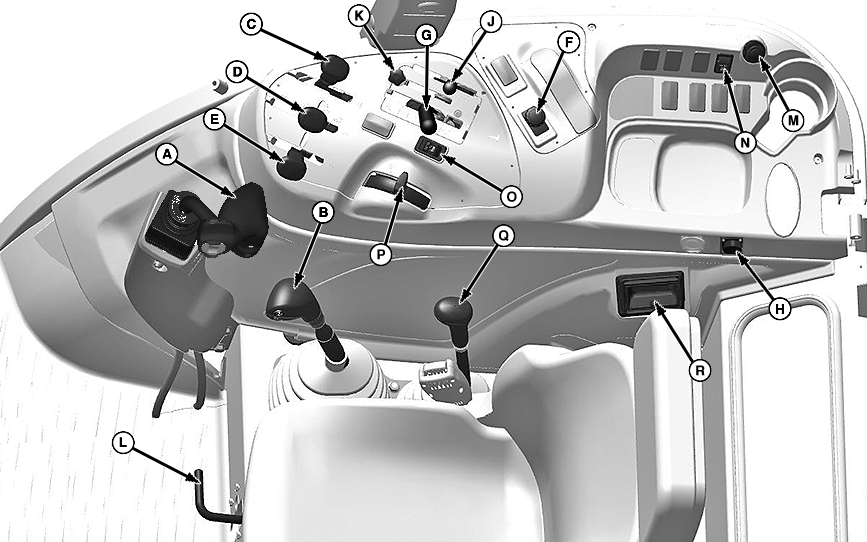

CPA0002718-UN-16MAY16

Cab

A - Multifunction Control Lever

B - Gear Shift Lever

C - SCV III Control Lever

D - SCV II Control Lever

E - SCV I Control Lever

F - PTO Control

G - Rockshaft Position Control Lever

H - 12 V Accessory Electrical Outlet

I - Service Advisor Outlet

J - Rockshaft Draft Control Knob/Lever

K - Position Control Stop Knob

L - Differential Lock Pedal

M - Cigarette Lighter (Cab only)

N - Rear Window Wiper/Washer Switch

O - Mechanical Front-Wheel Drive Switch

P - Hand Throttle

Q - Range Shift Lever

R - Ashtray (Cab only)

CPA0002731-UN-09MAY16

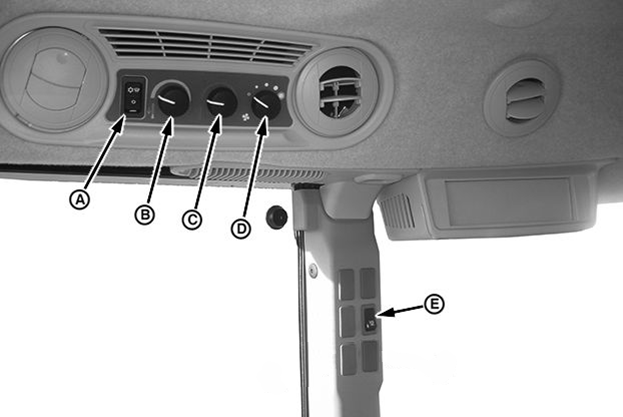

HVAC

A - Air Conditioning/Defrost Switch

B - Air Conditioning Temperature Control

C - Heater Temperature Control

D - Blower Speed Switch

E - Beacon Light Switch
