Front Console Controls

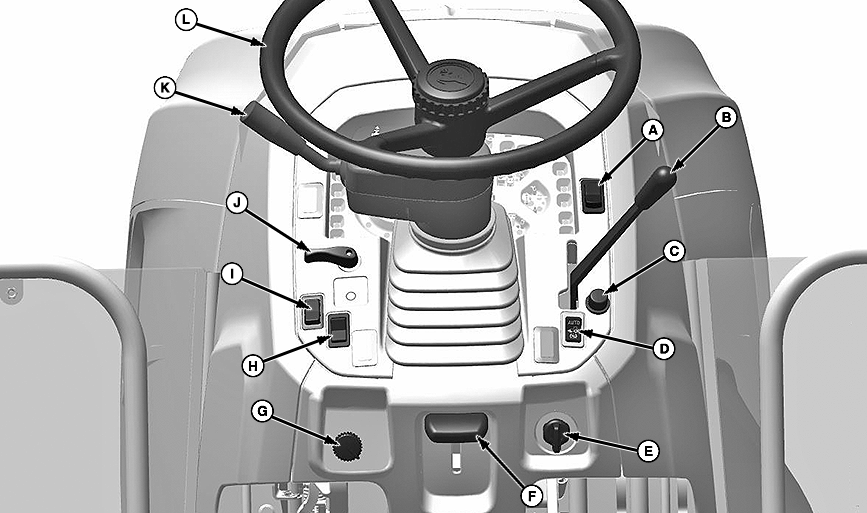

CPA0002727-UN-09MAY16

OOS

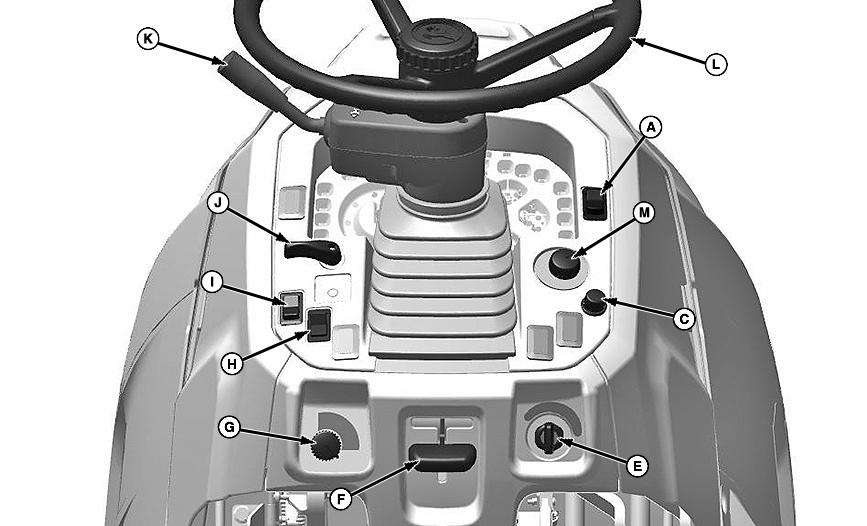

CPA0002709-UN-09MAY16

Cab

A - Exhaust Filter Cleaning Mode Switch

B - Hand Throttle

C - Horn

D - Mechanical Front-Wheel Drive Switch

E - Key Switch

F - Steering Wheel Tilt Lever

G - Light Switch

H - High/Low Beam Switch

I - Roll Mode Switch

J - Turn Singal Switch

K - FNR Lever

L - Steering Wheel

M - Wiper Switch (Cab only)

NOTE:

CPA0002710-UN-09MAY16

Cab

A - Clutch Pedal

B - Hand Brake

C - Brake Pedals

D - Foot Throttle
