Service Exhaust Filter Cleaning

IMPORTANT: Repeated cancellation or ignoring indicators to perform a parked exhaust filter cleaning procedure causes more engine power limitations which eventually lead to a dealer required service.

When STOP indicator (A) and exhaust filter indicator (B) are illuminated at the same time; contact your John Deere dealer.

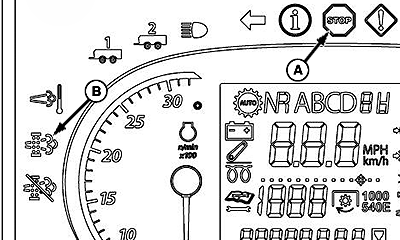

CPA0002836-UN-12JUN16

A - STOP Indicator

B - Exhaust Filter Indicator

If level of sulfur or urea at exhaust filter is extreme, STOP indicator (A) and exhaust filter indicator (B) illuminate together and engine power is reduced. Automatic exhaust filter cleaning and filter cleaning with tractor parked are no longer possible.

To service or clean the exhaust filter, contact your John Deere dealer.

Tips for avoiding service-cleaning:

• Do not disable exhaust filter cleaning unless it is absolutely necessary.
• Avoid unnecessary idling.
• Do not interrupt cleaning process unless it is absolutely necessary.
• If possible, do not shut off the engine while the exhaust filter indicator light is on.
• Take note of information displayed for the operator, and act accordingly.
