Fill Diesel Exhaust Fluid (DEF) Tank

CAUTION: DEF contains urea. Do not get the substance in eyes. In case of contact, immediately flush eyes with large amounts of water for a minimum of 15 minutes. Do not take internally. In the event DEF is ingested, contact a physician immediately. Reference the Materials Safety Data Sheet (MSDS) for additional information

IMPORTANT: Never put DEF in diesel fuel tank, or diesel fuel in DEF tank.

CPA0002830-UN-12JUN16

PY13364-UN-08MAY15

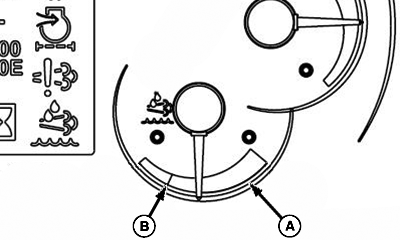

A - DEF Indicator Gauge

B - Low Level Mark

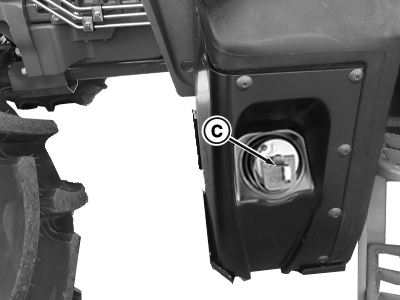

C - DEF Tank Cap

Item	Measurement	Specification
DEF Tank	Capacity	10.9 L (2.9 gal)

NOTE: Spilled DEF, if left to dry or if only wiped away with a cloth, leaves white residues. Aside from cosmetic issues, an improperly cleaned DEF spill may interfere with diagnosis of Selective Catalytic Reduction (SCR) system leakage problems.

NOTE: When filling DEF Tank, keep Tractor on a flat surface. This will ensure to achieve maximum DEF fill capacity.

To fill DEF tank:

1. Before using containers, funnels, etc. to dispense DEF, wash and rinse items thoroughly with distilled water to remove contaminants.
2. Wipe DEF tank cap (C) and area around cap and filler neck to reduce chance of contaminating DEF.
3. Remove DEF tank cap.
4. Using funnel, carefully pour DEF in tank, watching level through filler neck.
5. Securely tighten DEF tank cap.
6. Carefully clean any spills, using distilled water only.

If an unapproved fluid, such as diesel fuel, or engine coolant is added to vehicle DEF tank, drain tank and rinse with distilled water, then refill tank.

NOTE: To avoid any leak condition during the filling operation: Usage of  2.5 gal jog = 9.46 litters is recommended if the DEF tank is empty. This if a supply pistol to ensure the auto stop function provided  with  magnet on the filler neck is not available.

Minimum Diesel Exhaust Fluid (DEF) Level for Optimal Performance

P17796-UN-14JAN16

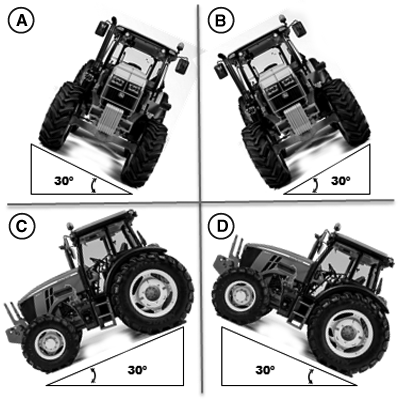

Tractor positions

A - 30º Clockwise

B - 30º Counterclockwise

C - 30º Nose Down

D - 30º Nose UP

For Optimal Performance when Tractor is being utilized on uneven soil, level of Diesel Exhaust Fluid (DEF) should be observed. Maximum Operation angle recommended is 30 Degrees.

Minimum Diesel Exhaust Fluid (DEF) Level at 30 Degrees

NOTE: When operating on field conditions at 30 degrees, it is recommended to keep DEF Tank at 1/4 as minimum. This is to ensure proper Tractor performance.
