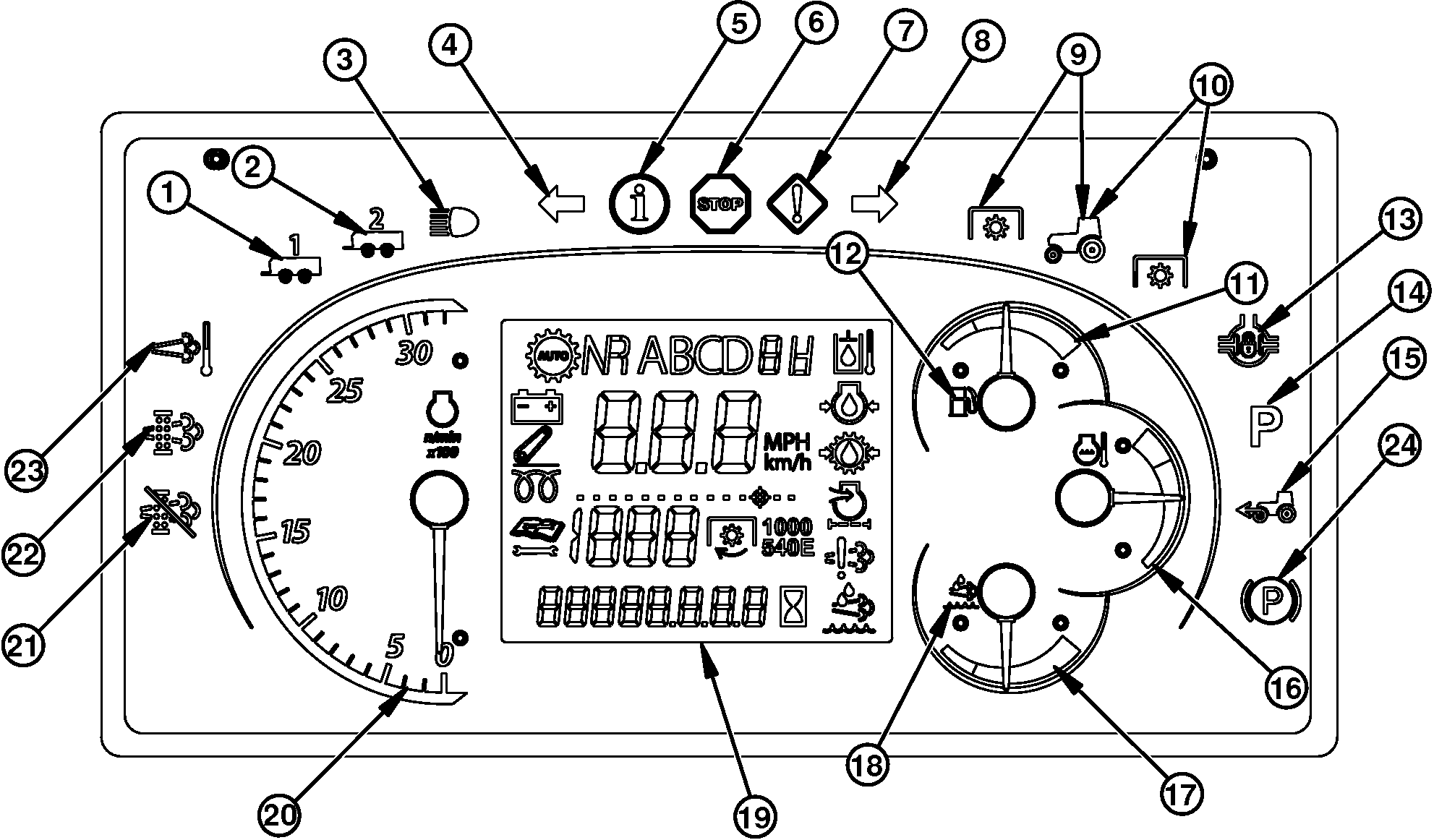

Instrument Cluster and Information Display

PY13304-UN-20APR15

1	Trailer 1 Indicator	Not used.
2	Trailer 2 Indicator	Not used.
3	High Beam Indicator	Illuminates when the headlights are switched to high beam.
4	Left Turn Indicator	Flashes when turn signal switch is switched to left-hand side.
5	Information Alert Indicator	Illuminates when a Diagnostic Trouble Code (DTC) is present. If necessary, have John Deere dealer diagnose vehicle.
6	STOP Indicator	Illuminates when a serious malfunction occurs. SHUT OFF engine IMMEDIATELY and determine cause (review error message in Information Display). If necessary, have John Deere dealer diagnose vehicle.
7	Service Alert Indicator	Illuminates when a malfunction occurs (review error message in Information Display). If necessary, have John Deere dealer diagnose vehicle.
8	Right Turn Indicator	Flashes when turn signal switch is switched to right-hand side.
9	Front PTO Indicator	Not used.
10	Rear PTO Indicator	Illuminates when rear PTO is activated. (If equipped.)
11	Fuel Level Indicator Gauge	Indicates amount of fuel remaining in tank.
12	Low Fuel Indicator	Illuminates when fuel level indicator moves into red zone.
13	Differential Lock Indicator	Not used.
14	Park Indicator	Not used.
15	MFWD Engaged Indicator	Illuminates when mechanical front-wheel drive is engaged.
16	Engine Coolant Temperature Gauge	Indicates engine coolant temperature. Red area indicates overheat (coolant level too low, dirty radiator, or clogged screen). SHUT OFF engine IMMEDIATELY to prevent damage. If necessary, have John Deere dealer diagnose vehicle.
17	Diesel Exhaust Fluid (DEF) Level Indicator Gauge	Indicates amount of diesel exhaust fluid (DEF) remaining in tank.
18	Low Diesel Exhaust Fluid (DEF) Indicator	Illuminates when DEF level indicator moves into red zone. Icon flashes if DEF level falls below “low” indicating level.
19	Information Display	Displays various vehicle information outputs.
20	Tachometer	Indicates engine speed, revolutions per minute (rpm).
21	Auto Cleaning Disabled Indicator	Illuminates when operator has engaged the disable auto exhaust filter cleaning function.
22	Exhaust Filter Indicator	Illuminates when exhaust filter cleaning is in progress, aftertreatment system has a fault, or exhaust filter is in need of cleaning.
23	Engine Emissions Temperature Indicator	Illuminates when exhaust gas temperature is high, elevated idle is active, or exhaust filter cleaning is in progress.
24	Park Brake Indiciator	Illuminates when the park brake lever has been placed.

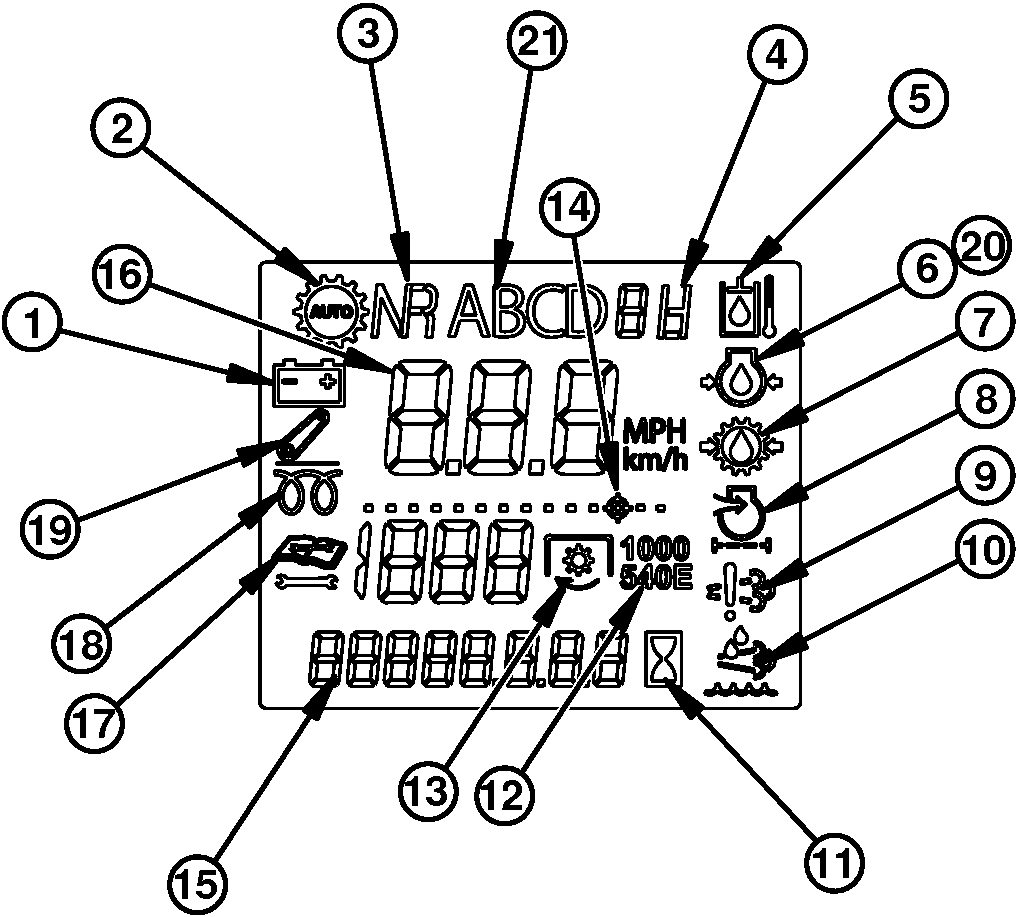

Information Display

PY13306-UN-06MAY15

Icon	Icon Name	Icon Description
1	Charging System Indicator	Illuminates when charging system malfunction occurs. If necessary, have John Deere dealer diagnose vehicle.
2	Transmission Indicator	Illuminates when transmission DTC is active. If necessary, have John Deere dealer diagnose vehicle.
3	F—N—R Indicator	Illuminates to indicate transmission position. F = Forward N = Neutral R = Reverse
4	High-low Indicator	Indicates H (high) or L (low) (if equipped).
5	Hydraulic Oil Temperature	Illuminates when hydraulic oil overheats. If necessary, have John Deere dealer diagnose vehicle.
6	Engine Oil Filter Pressure	Entire icon illuminates to indicate abnormal oil filter pressure. If necessary, have John Deere dealer diagnose vehicle.
7	Transmission Oil Pressure Indicator	Illuminates to indicate abnormal transmission oil pressure. If necessary, have John Deere dealer diagnose vehicle.
8	Engine Intake-Combustion Air Filter Indicator	Illuminates when air cleaner element is clogged (clean or replace element). If necessary, have John Deere dealer diagnose vehicle.
9	Engine Emission Systems Malfunction Indicator	Illuminates when there is a malfunction or failure to the emissions system. If necessary, have John Deere dealer diagnose vehicle.
10	Diesel Exhaust Fluid (DEF) Indicator	Illuminates when DEF is low.
11	Engine Hours Indicator	Illuminates when display is indicating engine hours.
12	PTO Speed Indicator	Indicates PTO Speed (540, 1000 rpm).
13	PTO Engaged Indicator	Illuminates when rear PTO is engaged.
14	PTO Target Speed Indicator	Illuminates when set PTO target speed has been achieved.
15	Vehicle Information Display	Displays engine hours, diagnostic trouble codes, and regeneration status.
16	Vehicle Speed Display	Displays current vehicle speed.
17	Diagnostic Code Display	Illuminates when active diagnostic trouble codes are being displayed.
18	Cold Start Status	Illuminates when air intake heater is energized. When illuminated, remaining starting aid time shows at vehicle speed display.
19	Rear Hitch Indicator	Illuminates when rear hitch malfunction occurs. If necessary, have John Deere dealer diagnose vehicle.
20	Engine Malfunction Indicator	Only engine portion of icon (6) illuminates to indicate engine malfunction. To prevent damage, SHUT OFF engine IMMEDIATELY. If necessary, have John Deere dealer diagnose vehicle.
21	A-B-C-D Range Indicator	Not used.
