Operate Tractor PTO

PY13321-UN-22APR15

Cab

PY13322-UN-22APR15

OOS

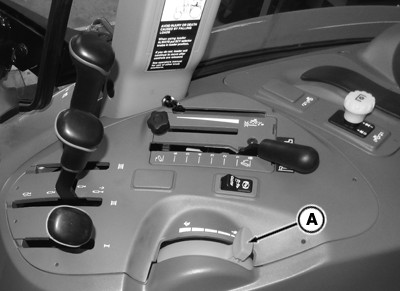

A - Hand Throttle Lever

1. Depress clutch pedal, start engine, engage PTO and push hand throttle lever (A) forward to desired PTO speed.

2. NOTE: If operator is NOT on seat when PTO switch is On:

   • OOS: Service alert indicator (C) will turn ON
   • Cab: Audible alarm will sound




   PY15213-UN-30MAY12

   Cab


   PY13323-UN-22APR15

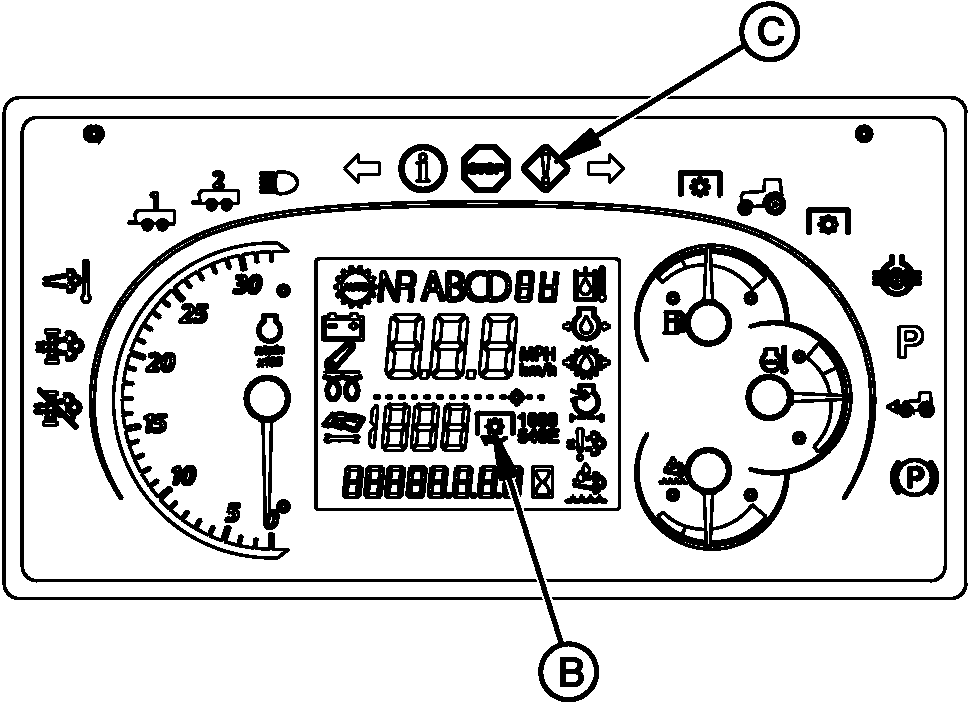

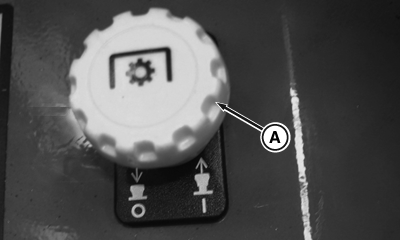

   A - PTO Switch

   B - PTO Indicator Light

   C - Service Alert Indicator

   Pull the PTO switch (A) up, to engage PTO. Indicator light (B) will turn on when PTO is engaged.

---




3. CAUTION: Avoid personal injury. Stop engine and allow PTO driveline to stop before adjusting, connecting or cleaning PTO-driven implement.

   To avoid entanglement with rotating shaft, always disengage PTO when not in use.

   Push the PTO switch down to disengage PTO.
