Required Machine Stop Warning


Machine Stop Mandate Occurs

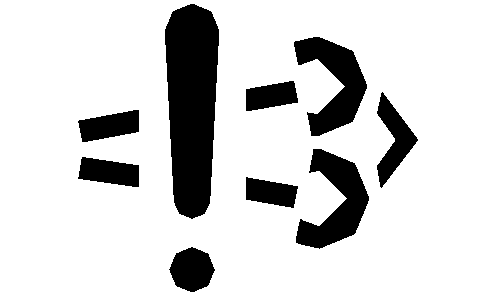

RG22491
RG22491-UN-21AUG13

IMPORTANT: In some situations, machine engine power may be reduced as described. On notification, immediately place the machine in a safe state and or move it to a safe location. A mandated machine stop can only be removed by a service technician.

Engine Emissions System Malfunction Indicator illuminates when an emission-related fault occurs.

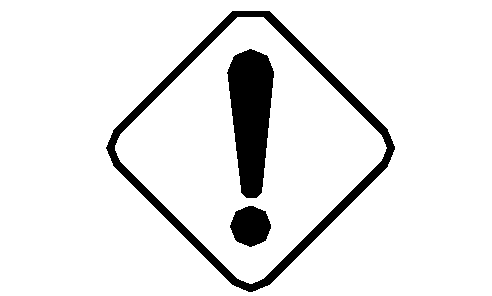

RG22492
RG22492-UN-21AUG13

Warning Indicator illuminates when a condition exists which requires operator action.

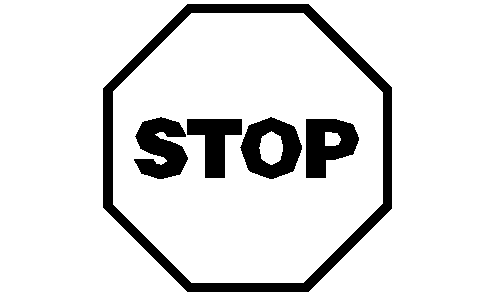

RG22493
RG22493-UN-21AUG13

Engine Stop Indicator illuminates when a condition exists which requires immediate operator action and service.


Emission System Fault Has Occurred

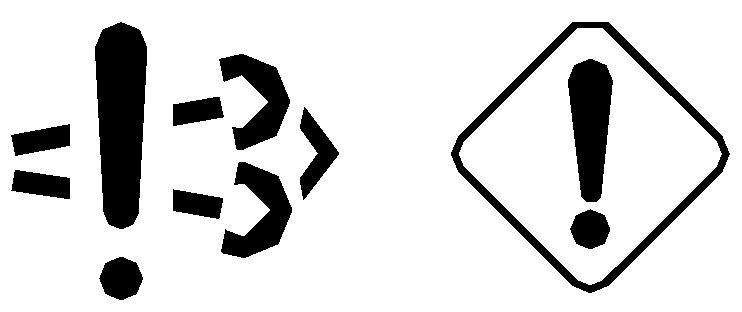

RG26361
RG26361-UN-04SEP14

30 minutes remaining, Engine Emissions System Malfunction and Warning Indicators are illuminated and alarm sounds to warn operator of emissions-related fault. “Less than 30 minutes to Power Restriction” displayed on machines with display.

  • Engine power is normal.
  • Machine operation is normal.
  • Place machine in a safe state.
  • Contact service provider.

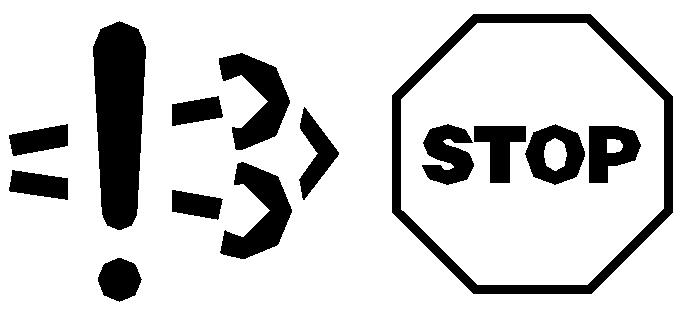

RG26972
RG26972-UN-26MAR15

20 minutes remaining, Engine Emissions System Malfunction and Engine Stop Indicators are illuminated and alarm sounds to warn operator of emissions-related fault. “Less than 20 minutes to Power Restriction” displayed on machines with displays.

  • Engine power and torque are reduced.
  • Key Off - Key On will temporarily provide full power.
  • Place machine in a safe state.
  • Contact service provider.

RG26972
RG26972-UN-26MAR15

2 minutes or less remaining, Engine Emissions System Malfunction and Engine Stop Indicators are illuminated and alarm sounds to warn operator of emissions-related fault which has not been corrected. “Power Restriction” displayed on machines with displays.

  • Engine power is idle only.
  • Place machine in a safe state.
  • Contact service provider.

DX,MACHSTOPWARN,AG-19-20151002
