Drain Water and Sediment From Fuel Filters

Service Interval—Daily / 10 Hours

PY15279
PY15279-UN-01JUN12

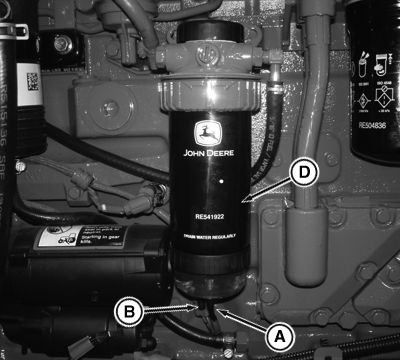

Right-Hand Side Of Engine

PY15280
PY15280-UN-01JUN12

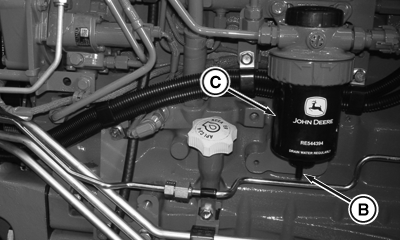

Left- Hand Side of Engine

A - Wiring Harness

B - Drain Port

C - Final Fuel Filter

D - Primary Fuel Filter

  1. Disconnect wiring harness (A).

  2. Connect a small hoses to end of drains (B).

  3. Place a suitable container under drains.

  4. Open fuel filter drains (B) to drain moisture and sediment from filters (C and D).

  5. Tighten drains when fuel runs clear.

  6. Remove drain hoses and connect wiring harness.

HL70592,000005C-19-20140428
