Replace Alternator/Fan Belt

1.
   PY15151-UN-29MAY12


   PY15548-UN-05JUL12

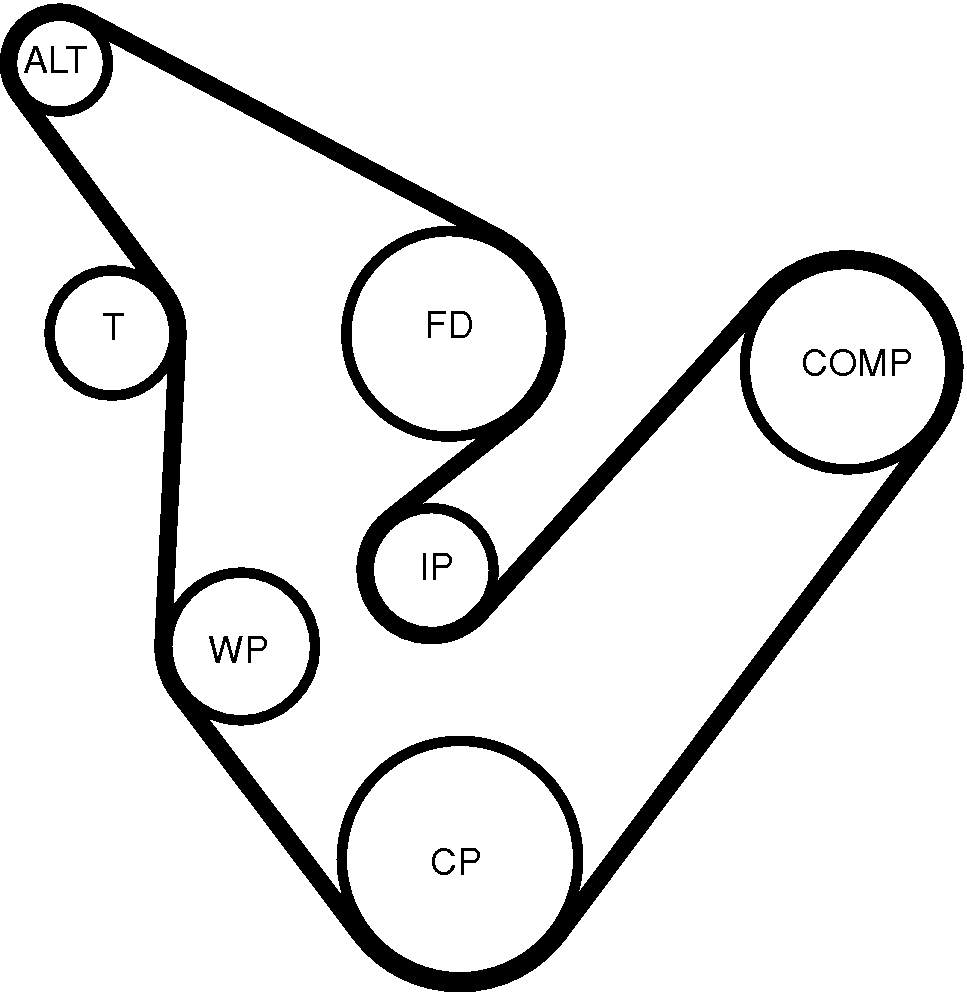

   Cab Belt Diagram


   P9719-UN-27SEP00

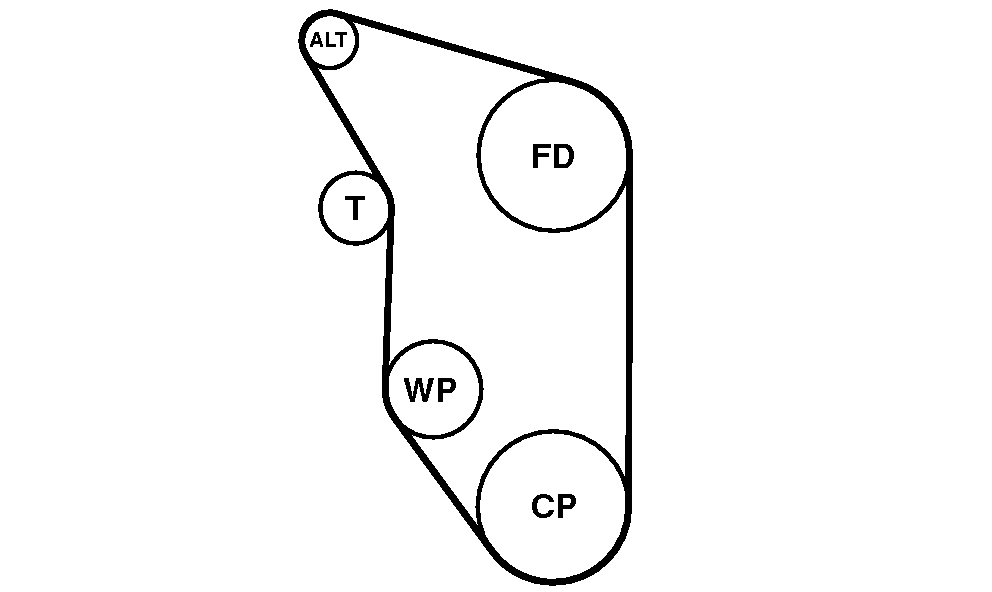

   OOS Belt Diagram

   A - Belt

   ALT - Alternator

   COMP - Compressor (Air Conditioning System)

   CP - Crankshaft Pulley

   FD - Fan Drive Pulley

   IP - Idler Pulley

   T - Tensioner Idler

   WP - Water Pump

   Raise hood.

---




2. Release tension on belt using a 1/2 in. drive long-handle breaker bar. Remove belt (A) from alternator pulley over fan.

3. Install new belt in reverse order of removal.
