Engine Operation—Break-In Check

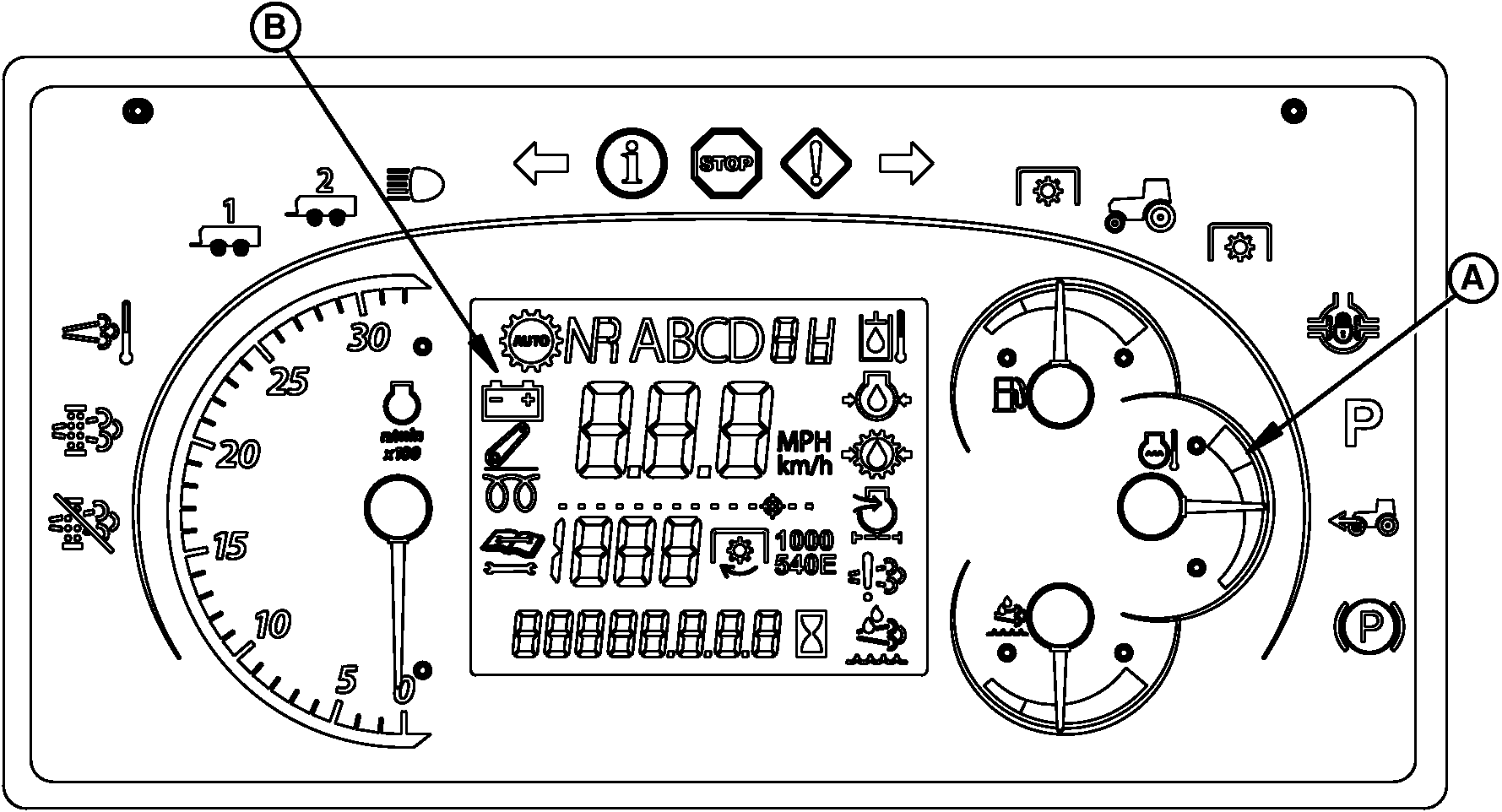

PY21075-UN-07MAY15

A - Engine Coolant Temperature Gauge

B - Charging System Indicator

IMPORTANT: To become thoroughly familiar with the sound and feel of your new tractor, use extra caution during the first 100 hours.

Warm up tractor. Check engine coolant temperature gauge (A), charging system indicator (B), and warning indicators.

Avoid unnecessary engine idling.

Check engine oil, coolant, transmission-hydraulic, and mechanical front-wheel drive (if equipped) fluid levels frequently. Watch for fluid leaks.

NOTE: If engine oil is added, use seasonal viscosity grade oil.
