Exhaust Filter System Overview

LV21995-UN-09JUN14

Exhaust Filter Cleaning Mode Switch—Location

LV23057-UN-12SEP14

Exhaust Filter Cleaning Mode Switch

A - Exhaust Filter Cleaning Mode Switch

B - Parked Cleaning

C - Automatic (AUTO) Cleaning

D - Auto Cleaning Disabled

Your machine is equipped with an emission-compliant engine, which cleans and filters the engine exhaust. Under normal machine operation and with system in Automatic (AUTO) mode, the system requires minimal operator interaction. To understand when and where operator interaction is required, read the Exhaust Filter Cleaning sections.

To ensure that exhaust filter system operates as intended:

• Utilize AUTO exhaust filter cleaning mode.
• Avoid unnecessary idling.
• Use proper engine oil. (See Fuels, Lubricants, and Coolants section for recommendations.)
• Use only ultra low sulfur fuel. (See Fuels, Lubricants, and Coolants section for recommendations.)

NOTE: Exhaust filter cleaning mode switch (A) is a momentary contact switch. Normal (default) position is AUTO.

Use three position exhaust filter cleaning mode switch (A) to select exhaust filter cleaning modes; Parked Cleaning (B), AUTO Cleaning (C), and Auto Cleaning Disabled (D). To disable auto cleaning, exhaust filter cleaning mode switch needs to be depressed for 5 seconds.

IMPORTANT: Use disable mode (D) when temporarily connected to an indoor duct exhaust system for diagnostic and repair activities. Avoid disabled mode unless absolutely necessary. Repeated disabling or ignoring prompts to perform manual – parked cleaning procedure causes additional engine power limitation and eventually leads to required dealer service.

Exhaust filter cleaning will automatically reset back to AUTO mode when tractor is turned off and restarted.

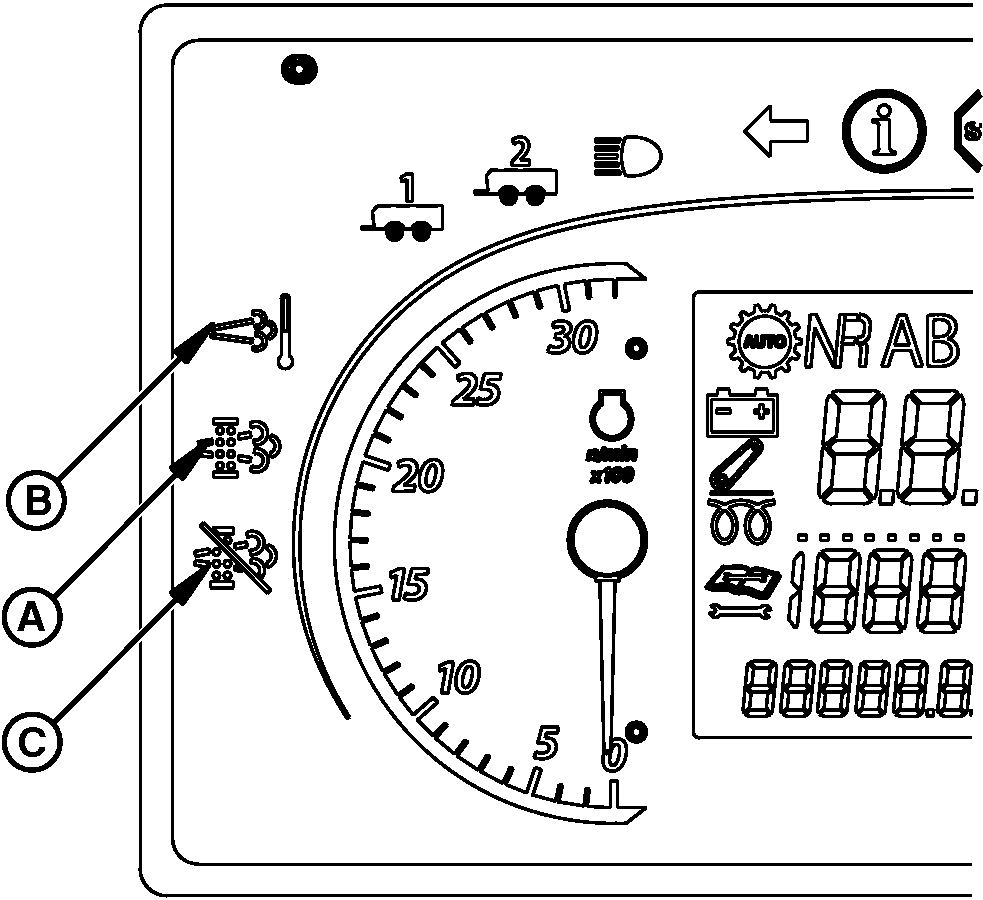

Exhaust Filter Indicators

PY13348-UN-07MAY15

Exhaust Filter Indicator (A)

Indicates that one of the following has occurred:

• Exhaust filter cleaning is in process.
• Aftertreatment system has a fault.
• Exhaust filter is in need of cleaning and operator has disabled auto exhaust filter cleaning.

Engine Emissions Temperature Indicator (B)

Indicates that exhaust gas temperature is high, elevated idle is active, or exhaust filter cleaning is in process.

Auto Cleaning Disabled Indicator (C)

Indicates that operator has engaged the auto cleaning disabled function.

Operator Information

1.
   H94828-UN-13OCT09

   Exhaust Filter Indicator

   Description	Recommended Procedure
   Exhaust filter cleaning is in process. Aftertreatment system has a fault. Exhaust filter is in need of cleaning and the operator has disabled auto exhaust filter cleaning. NOTE: If no cleaning is carried out, engine power is reduced	Activate automatic filter cleaning; see Automatic Exhaust Filter Cleaning. Alternatively, perform exhaust filter cleaning with tractor parked; see Parked Exhaust Filter Cleaning.

---




2.
   LX1049779-UN-22JUL10

   Engine Emissions Temperature Indicator

   Description	Recommended Procedure
   Exhaust gas temperature is high, elevated idle is active, or exhaust filter cleaning is in process.	Do not interrupt automatic exhaust filter cleaning unless necessary; see Automatic Exhaust Filter Cleaning.

---




3.
   LX1049777-UN-22JUL10

   Parked Exhaust Filter Cleaning Required

   Description	Recommended Procedure
   System reduced engine performance because: —There is an aftertreatment system fault. —Sulfur deposits, or urea deposits on exhaust filter are moderately high.	Perform Parked Exhaust Filter Cleaning.

---




4.
   LX1049776-UN-22JUL10

   Service Exhaust Filter Cleaning Required

   Description	Recommended Procedure
   System reduced engine performance because there is an aftertreatment system fault or exhaust filter is in need of cleaning.	Contact your John Deere dealer. Have dealer perform service on the exhaust filter. See Service Exhaust Filter Cleaning.

---
