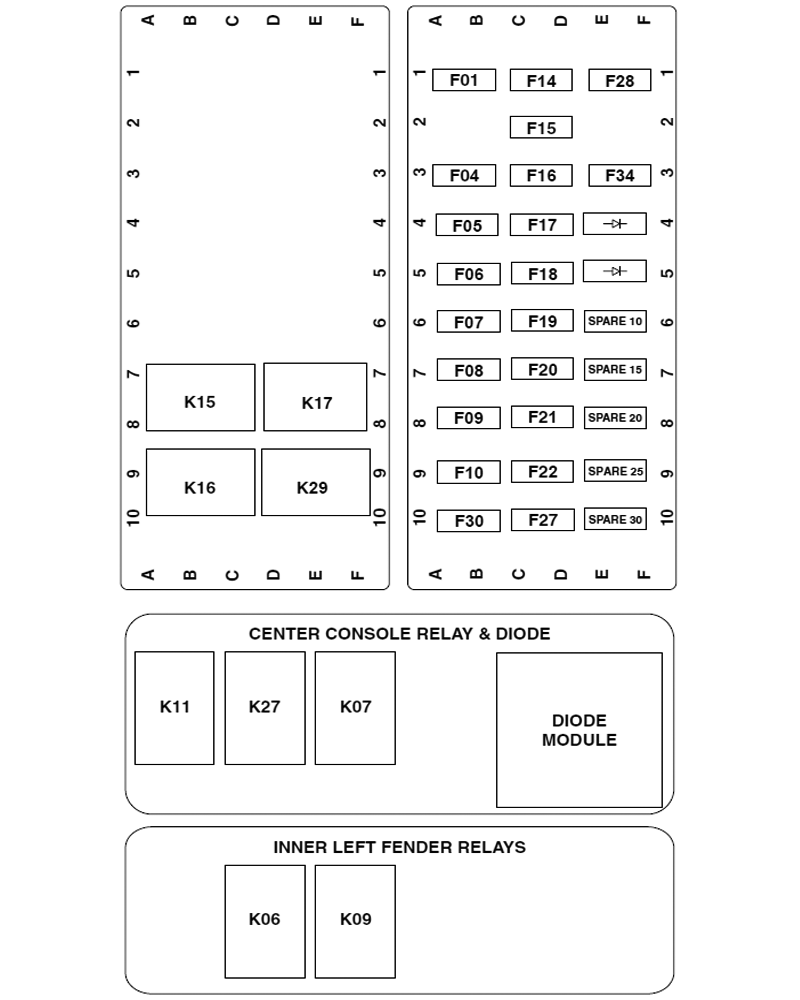

Load Center Fuses and Relays-OOS

P17632-UN-21APR15

SU39477

K15 - Electrohydraulic System Relay

K16 - Not Neutral Relay

K17 - Transmission Enable Relay

K29 - Trail Clearance

F01 - Key Switch Fuse, 30 Amp

F02 - Turn/Warning Light Fuse, 30 Amp

F04 - Light Switch Fuse, 20 Amp

F05 - High/Low Beam Fuse, 15 Amp

F06 - Battery Switch Fuse, 30 Amp

F07 - Turn Signal Light Switch Fuse, 10 Amp

F08 - Instrument Cluster Fuse, 10 Amp

F09 - Brake Light Fuse, 15 Amp

F10 - Trailer Power Fuse, 20 Amp

F11 - Battery Unswitch Fuse, 30 Amp

F14 - Work Lamp Fuse, 30 Amp

F15 - Tail Light Fuse, 10 Amp

F19 - Electrohydraulic System Power Fuse, 10 Amp

F20 - Sensor Excitation Fuse, 10 Amp

F21 - Electrohydraulic System Power Fuse, 10 Amp

F22 - Seat Switch 10 Amp

F27 - Backup Alarm Fuse, 5 Amp

F34 - Electronic Control Unit/Service Advisor Fuse, 30 Amp

V04 - Diode

V04 - Diode

SPARE 10 - Spare Fuse, 10 Amp

SPARE 15 - Spare Fuse, 15 Amp

SPARE 20 - Spare Fuse, 20 Amp

SPARE 25 - Spare Fuse, 25 Amp

SPARE 30 - Spare Fuse, 30 Amp

K11 - Neutral Relay

K27 - Headlights Relay

K07 - Accessory Controller Relay

Diode Module - Diode Module

K06 - 7-Pin Oulet Relay

K09 - Front Work Light Relay
