Towing Tractor

1. CAUTION: Never tow tractor faster than 16 km/h (10 mph). Have an operator steer and brake tractor.

   IMPORTANT: To avoid damaging transmission/hydraulic system, observe the following precautions prior to towing tractor:


   PY15254-UN-30MAY12


   P17640-UN-22APR15


   P17294-UN-21MAY14

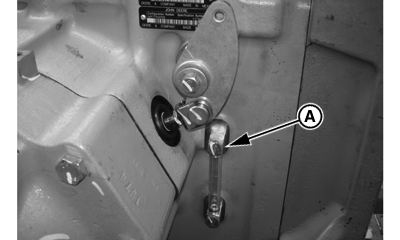

   A - Oil Level Sight Glass

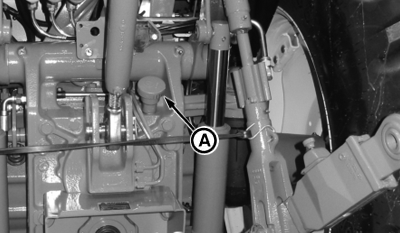

   B - Hydraulic Oil Fill Port

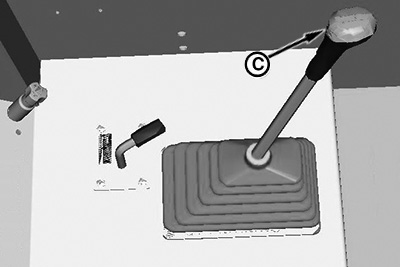

   C - Tow Lock Position

   Be sure transmission/hydraulic system oil is up to the full level line on sight glass (A). If the tractor is to be towed with the front wheels raised, add 1 liter (1 qt) of oil to hydraulic fill port (B) for each 90 mm (3-1/2 in.) the wheels are raised. Do not raise front wheels more than 305 mm (12 in.) above ground.

   NOTE: After transporting tractor, drain oil that was added for towing.

---




2. Make sure differential lock is disengaged and gear shift lever is in neutral position, “N”.

3. Range selector lever must be placed in tow lock position (C), located between B and C range marks.
