Clean Open Crankcase Vent (OCV) Tube

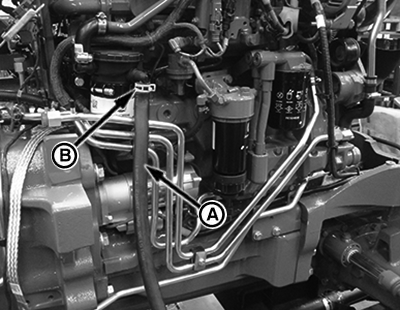

P17650-UN-07MAY15

Right-Hand Side Shown

A - Open Crankcase Vent (OCV) Tube

B - OCV Filter Housing

Service Interval—1000 Hours

CAUTION: Reduce compressed air to less than 210 kPa (2 bar) (30 psi) when using for cleaning purposes. Clear area of bystanders, guard against flying chips and wear personal protection equipment, including eye protection.

1. Remove open crankcase vent tube (A) from OCV filter housing (B)

2. Wash in solvent or blow clean with compressed air.

3. Install OCV tube to OCV filter housing.

4. Make sure vent tube is not kinked or pinched.
