Clean Cab Air Filters

Recirculation Filters (Inside Cab)

CAUTION: The air quality system air filters are not designed to filter out harmful chemicals. Follow the instructions in the implement operator's manual and those given by the chemical manufacturer when using agricultural chemicals.

NOTE: There are filters on BOTH sides of cab. Left-hand side is shown.

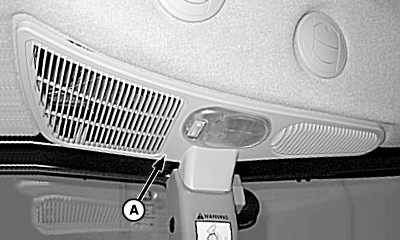

P14487-UN-30OCT07

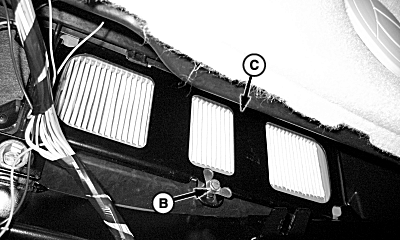

P14488-UN-30OCT07

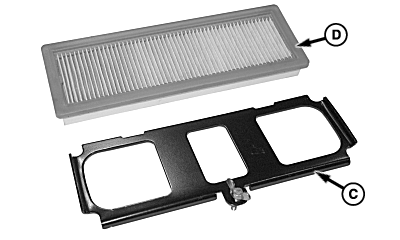

P14490-UN-30OCT07

A - Cover

B - Wing Screw

C - Filter Retainer

D - Filter

1. Pry off cover (A). (Pull down along window.)

2. Remove wing screw (B), retainer (C) and filter (D).

3. Inspect filter for holes or damage. Inspect rubber seal for cracks or wear. Replace as necessary.

4. NOTE: Do not clean filter with water or compressed air. Cleaning the filter is not recommended and should be replaced as needed.

   Replace filter when it becomes dirty. It may require replacing filter more often in dusty conditions.

5. Install filter with rubber seal toward retainer (C).

6. Install retainer, wing screw and cover.

7. Repeat procedure on opposite side.

Fresh Air Filters (Outside Cab)

1.

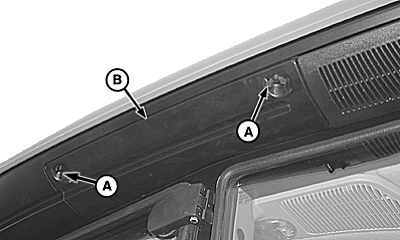

   P14491-UN-30OCT07

   Under Roof, Above Cab Door

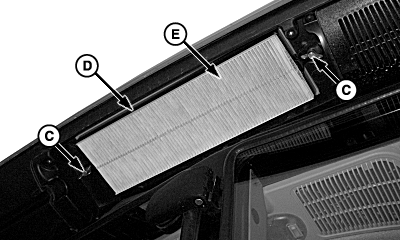

   P14489-UN-30OCT07

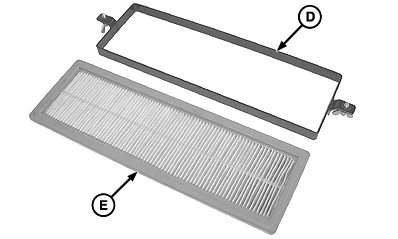

   P14492-UN-30OCT07

   A - Wing Screws

   B - Filter Cover

   C - Wing Screws

   D - Filter Retainer

   E - Filter

   Remove two wing screws (A) and cover (B).

---




2. Remove wing screws (C), retainer (D) and filter (E).

3. Inspect filter for holes or damage. Inspect rubber seal for cracks or wear. Replace as necessary.

4. NOTE: Do not clean filter with water or compressed air. Cleaning the filter is not recommended and should be replaced as needed.

   Replace filter when it becomes dirty. It may require replacing filter more often in dusty conditions.

5. Install filter with rubber seal toward cab.

6. Install retainer and wing screws.

7. Install cover and wing screws.

8. Repeat procedure on opposite side.
