Check Cooling System for Leaks

P17653-UN-07MAY15

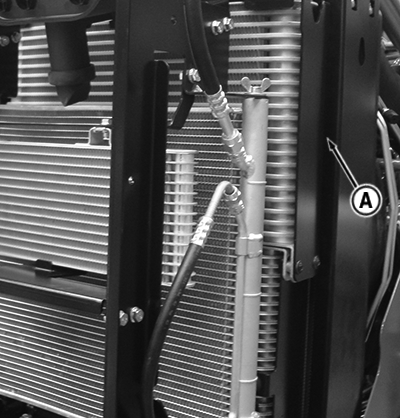

Radiator

PY15277-UN-01JUN12

PY15278-UN-16AUG12

Left-Hand Side of Engine

A - Radiator

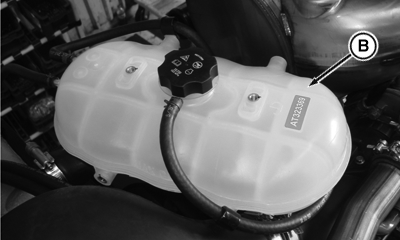

B - Coolant Reservoir

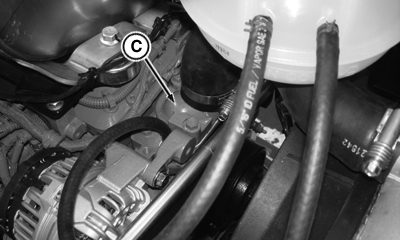

C - Thermostat Housing

Service Interval—500 Hours

1. Check around base of radiator (A) for pinholes, cracks or any sign of coolant leakage.

2. Inspect coolant reservoir (B) for holes, cracks or any sign of coolant leakage.

3. Inspect area around thermostat housing (C) for cracks, or any sign of coolant leakage.
