Tread Settings—MFWD Axle

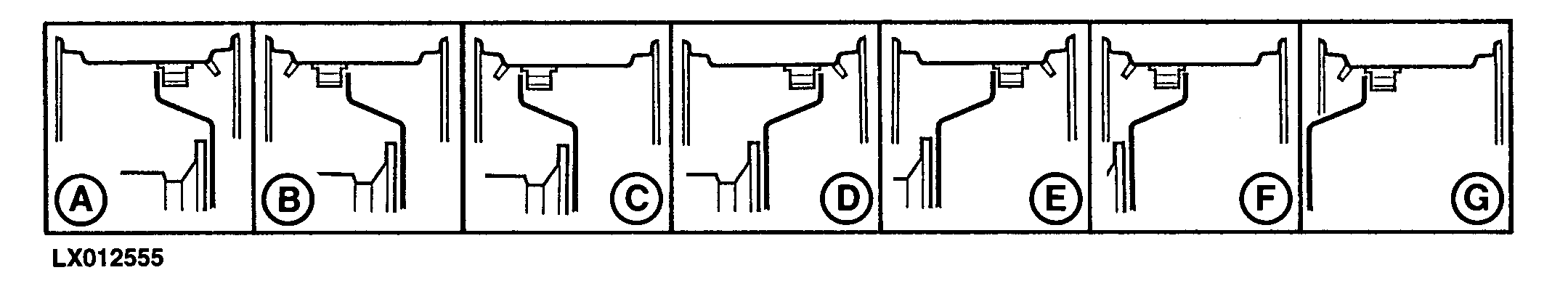

LX012555-UN-27JUN96

Front wheel tread can be adjusted by repositioning or by reversing wheel rims. In addition, the complete wheel can be reversed by installing it on the opposite side of the tractor. When using this option, make sure the arrow on the tire sidewall is pointing in the direction of forward travel.

TREAD WIDTH
Rims and Wheel Disk Positions
Tire Size	A	B	C	D	E	F	G
340/85 R24	N/A	1518 mm (59.7 in.)	1626 mm (64.0 in.)	1740 mm (68.5 in.)	1849 mm (72.8 in.)	1933 mm (76.1 in.)	2033 mm (80.0 in.)
380/85 R24	N/A	1518 mm (59.7 in.)	1626 mm (64.0 in.)	1740 mm (68.5 in.)	1849 mm (72.8 in.)	1933 mm (76.1 in.)	2033 mm (80.0 in.)
