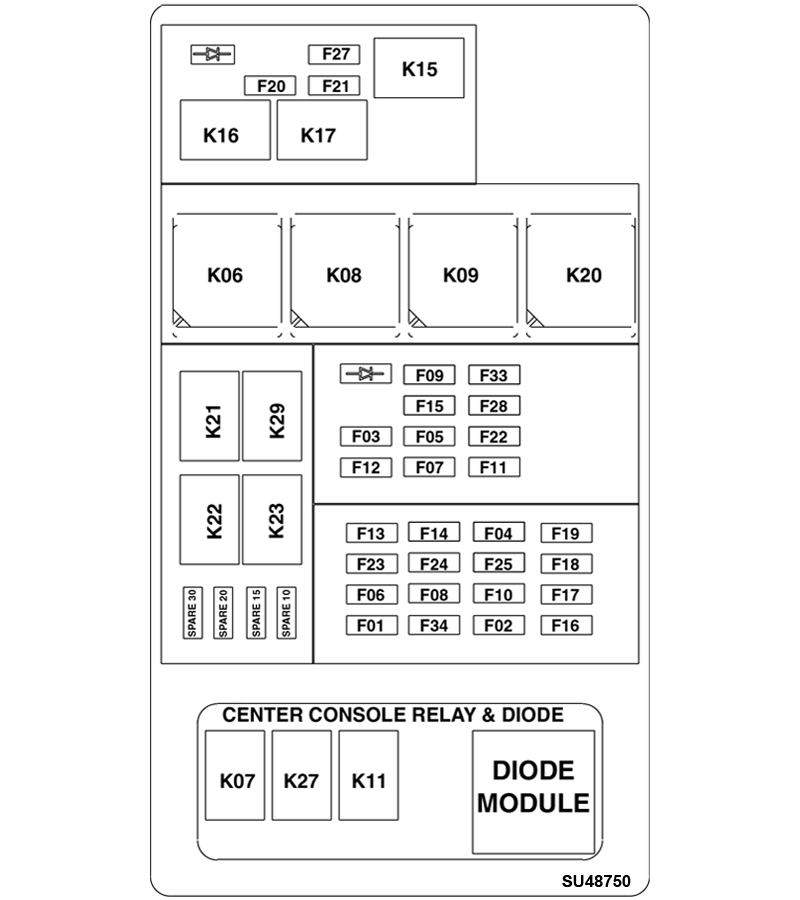

Load Center Fuses and Relays—Cab

P17944-UN-20APR16

SU48750

F20 - Sensor Excitation Fuse, 10 Amp

F27 - Backup Alarm Fuse, 5 Amp

F21 - Electrohydraulic System Power Fuse, 10 Amp

K15 - Electrohydraulic System Relay

K16 - Not Neutral Relay

K17 - Transmission Enable Relay

K06 - Trailer Power Relay

K08 - Rear Work Light Relay

K09 - Front Work Lights Relay

K20 - HVAC Relay

K21 - Wiper Relay

K22 - Left Blower Relay

K23 - Right Blower Relay

K29 - Trail/Clearance Relay

K07 - Accessory Controller Relay

K27 - Head Lights Relay

K11 - Neutral Relay

SPARE 10 - Spare Fuse, 10 Amp

SPARE 15 - Spare Fuse, 15 Amp

SPARE 20 - Spare Fuse, 20 Amp

SPARE 30 - Spare Fuse, 30 Amp

F09 - Brake Light Fuse, 15 Amp

F33 - Tail Light Fuse, 10 Amp

F15 - Clearance Fuse, 10 Amp

F28 - Clearance Fuse, 10 Amp

F03 - Dome/Radio Fuse, 10 Amp

F05 - Head Light Fuse, 15 Amp

F22 - Seat Switch Fuse, 10 Amp

F12 - Radio Fuse, 10 Amp

F07 - Turn Signal Light Switch Fuse, 10 Amp

F11 - Battery Switch Fuse, 30 Amp

F13 - Rear Work Light Fuse, 30 Amp

F04 - Light Switch Fuse, 20 Amp

F14 - Key Switch Fuse, 30 Amp

F19 - Chasis Control Unit/Service Advisor Fuse, 10 Amp

F23 - HVAC Fuse, 30 Amp

F24 - Wiper Motor Fuse, 20 Amp

F25 - Blower Fuse, 20 Amp

F18 - Electronic Control Unit/Service Advisor Fuse, 25 Amp

F06 - Battery Power Fuse, 30 Amp

F08 - Instrument Cluster Fuse, 20 Amp

F10 - Trailer Power Fuse, 30 Amp

F17 - Electronic Control Unit/Service Advisor Fuse, 25 Amp

F01 - Key Switch Fuse, 30 Amp

F34 - Instrument Cluster Control Unit/Service Advisor Fuse, 20 Amp

F02 - Warning Lights Fuse, 20 Amp

F16 - Electronic Control Unit/Service Advisor Fuse, 25 Amp

Diode Module - Diode Module
