Rockshaft Control Levers

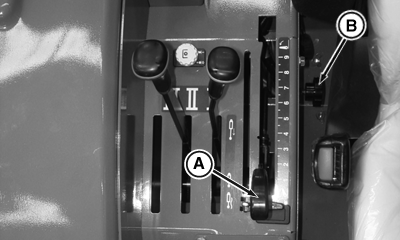

PY13307-UN-20APR15

Control levers for OOS

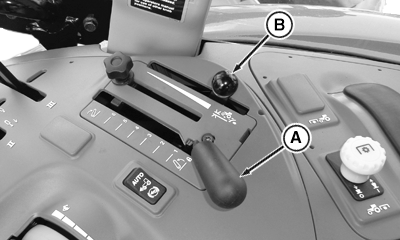

PY20020-UN-10FEB14

Control levers for Cab

A - Rockshaft Position Control Lever

B - Rockshaft Draft Control Lever (If Equipped)

The rockshaft is controlled by position control lever (B) and draft control lever (A). Position control lever raises the hitch when pulled rearward, and lowers the hitch when moved forward.

Draft control lever controls hitch position relative to draft loads.
