Opening Windows

P12674-UN-24NOV03

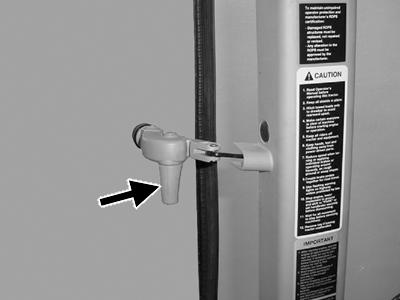

Left-Side Window

P12675-UN-24NOV03

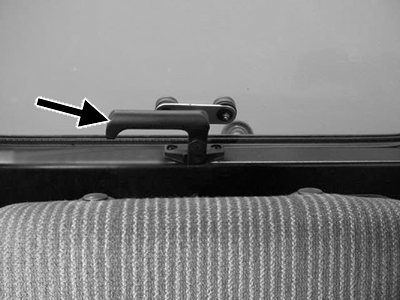

Rear Window

Side and rear windows can be opened for better ventilation.

Side: Pull handle toward rear and push to lock open.

Rear: Rotate handle clockwise and push out.

NOTE: Rear window opening provides a large exit path if cab doors are blocked in case of an emergency.
