Optimizing A/C and Heater Performance

LV10325
LV10325-UN-21SEP04

LV10326
LV10326-UN-21SEP04

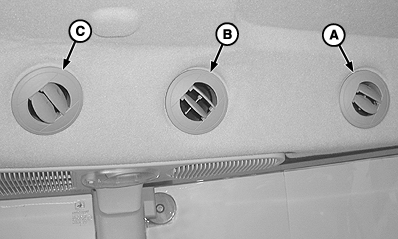

A - Front Vent

B - Middle Vent

C - Rear Vent

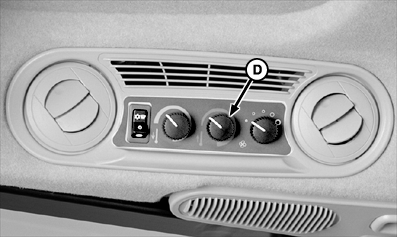

D - Heater Temperature Control Knob

Adjust individual vents to target heating or cooling:

  • Position front vents (A) toward legs and mid-body.
  • Position middle vents (B) toward your head.
  • Position rear vents (C) toward your back. NOTE: For maximum cooling effect, turn heater temperature control knob (D) to full counterclockwise position.

Position all vents (A, B, and C) down to heat the floor and feet.

OUO1080,00002AB-19-20080326
