Access Fuses and Relays
PY14636-UN-02JUN12

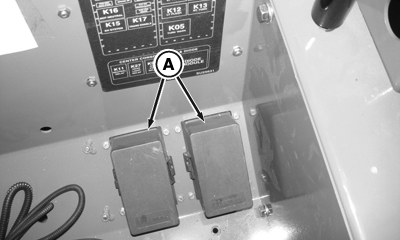

OOS Fuse Box Location
PY13337-UN-07MAY15

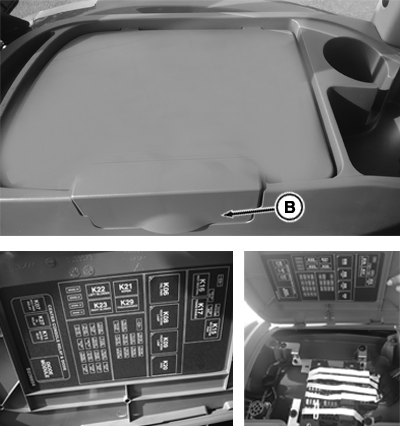

Cab Fuse Box Location
A - Fuse Box Cover (OOS)
B - Fuse Box Cover (Cab)
- OOS — Pinch tabs and pull off cover (A).
- Cab — Pry off cover (B).
To remove fuse box cover:
|
Fuse Rating |
Color |
|---|---|
|
5 Amp |
Orange |
|
10 Amp |
Red |
|
15 Amp |
Blue |
|
20 Amp |
Yellow |
|
30 Amp |
Green |
IMPORTANT: Do not replace original fuse with higher rated fuse or machine damage may occur.
If original size fuse will not carry electrical load and continues to blow contact your John Deere dealer.
|
PG57337,00002C9-19-20150507 |
