Lubricate Steering Linkage

PY13396-UN-10JUL15

Left-Hand Side Shown

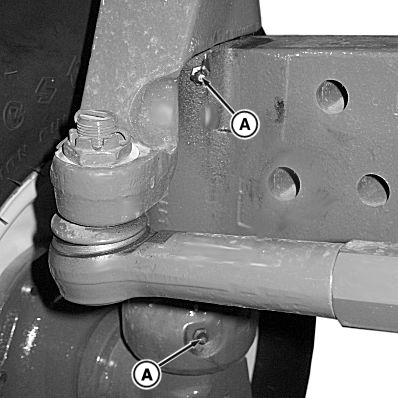

A - Steering Spindle Fittings

Service Interval—Weekly / 50 Hours* * Daily / 10 Hours if operated in extremely wet or muddy conditions

2WD Axle

Apply several shots of grease to steering spindle fittings (A), on both left and right-hand sides.

MFWD Axle

PY13397-UN-10JUL15

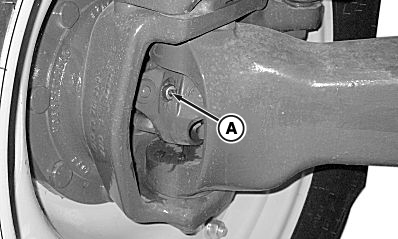

Right-Hand Side—Front

PY13398-UN-10JUL15

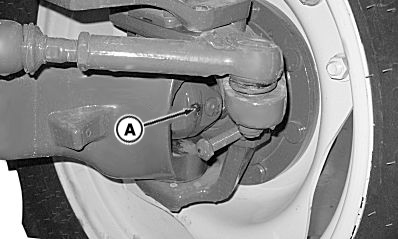

Right-Hand Side—Rear

A - Lube Fittings

Service Interval—Weekly / 50 Hours* * Daily / 10 Hours if operated in extremely wet or muddy conditions

Turn steering wheel full left or right to access lube fittings (A).

• Left-hand turn
  • Front fitting on left-hand side
  • Rear fitting on right-hand side
• Right-hand turn
  • Rear fitting on left-hand side
  • Front fitting on right-hand side
