Lubricate Front Axle Pivot Pins

PY13399-UN-10JUL15

2WD Axle—Rear

PY13400-UN-10JUL15

2WD Axle—Front

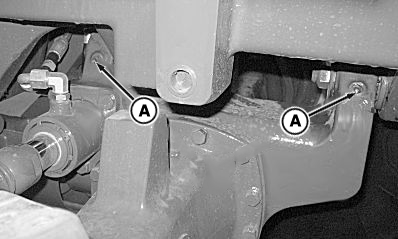

PY13401-UN-10JUL15

MFWD Axle (Right-Hand Side)

A - Lube Fittings

Service Interval—Weekly / 50 Hours* * Daily / 10 Hours if operated in extremely wet or muddy conditions

Lubricate front axle pivot pins at the lube Fittings (A) as shown.
