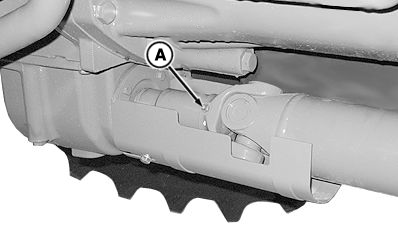

Lubricate MFWD Axle Shaft

PY13402-UN-10JUL15

A - Lube Fitting

Service Interval—Weekly / 50 Hours* * Daily / 10 Hours if operated in extremely wet or muddy conditions

Lubricate MFWD Axle shaft at the lube fitting (A) as shown.
