Lubricate Rear Axle Bearings

PY13404-UN-10JUL15

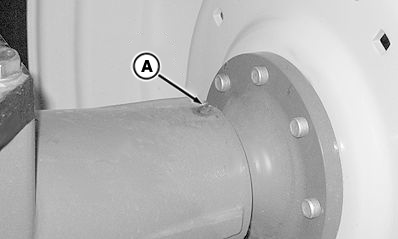

Right-Hand Side Shown

A - Lube Fitting

Service Interval—500 Hours* * Weekly / 50 Hours if operated in extremely wet or muddy conditions

Lubricate rear axle bearings at the lube fitting (A) as shown.
