Front Fender Adjustment (MFWD Axle)

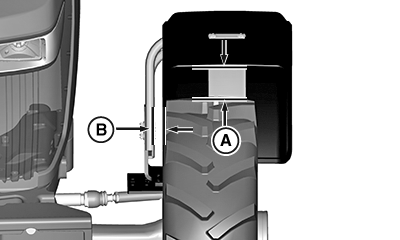

PY22992-UN-13JUL15

A - Top of Tire Clearance

B - Side of Tire Clearance

Fenders must be installed in correct position depending on tire size and tread width.

Check for clearance between top of tire and fender (A) and side of tire and frame (B). Adjust as needed.
