Remove Battery

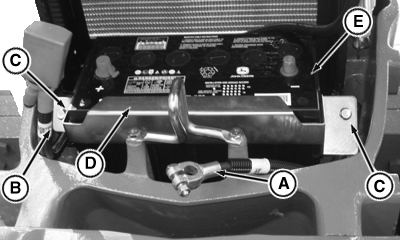

PY15287-UN-02JUN12

A - Negative Terminal (—)

B - Positive Terminal (+)

C - Nuts

D - Bracket

E - Battery

1. CAUTION: To avoid sparks, disconnect negative cable (A) first and connect it last.

   Raise hood.

2. Disconnect negative (—) battery cable (A).

3. Disconnect positive (+) battery cable (B).

4. Remove nuts (C) and bracket (D).

5. Remove battery (E) from machine.
