Fusible Link Location

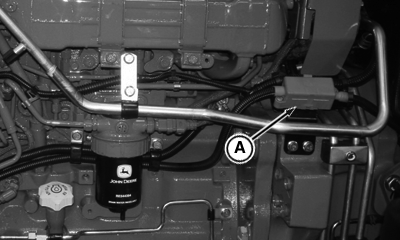

PY15289-UN-02JUN12

A - Fusible Link Junction Block (F26)

Electrical circuits are protected by a fusible link.

Raise hood. Fusible link junction block (A) is located on right-hand side of engine.
