Tighten Bolts—Adjustable Front Axle

PY14614-UN-01JUN12

PY14613-UN-01JUN12

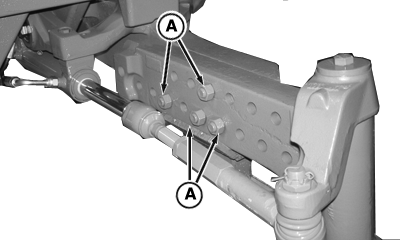

A - Axle-to-Knee Bolts (4 used each side)

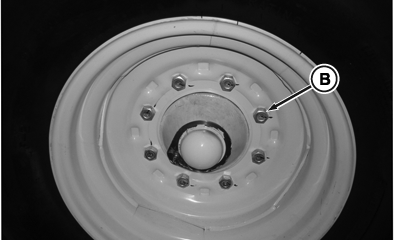

B - Wheel Disk-to-Axle Flange Bolts (8 used each side)

Item	Measurement	Specification
Adjustable Front Axle—Axle-to-Knee Bolts	Torque	480 N˙m (350 lb-ft)
Adjustable Front Axle—Disk-to-Flange Bolts	Torque	250 N˙m (185 lb-ft)
