Adjusting Toe-In—Adjustable Front Axle (2WD)

PY14618-UN-01JUN12

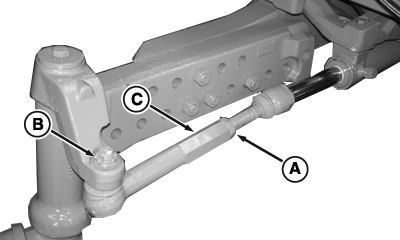

Front Axle with 102 mm (4 in.) Extension

A - Jam Nut

B - Slotted Nut

C - Tie-rod (with extension)

NOTE: Adjust toe-in equally at both tie-rods.

1. Loosen jam nut (A).

2. Remove cotter pin and slotted nut (B).

3. Remove tie-rod (C) from spindle assembly.

4. Turn tie-rod end to lengthen or shorten, as needed, to desired toe-in.

5. Install tie-rod end and slotted nut. Tighten nut to specification. Install cotter pin.

   Item	Measurement	Specification
   Slotted Nut (B)	Torque	100 N·m (74 lb-ft)

6. Tighten jam nut (A) to specification.

   Item	Measurement	Specification
   Jam Nut (A)	Torque	250 N·m (185 lb-ft)

7. Repeat on opposite side.
