Adjusting Toe-In—MFWD Axle

1.

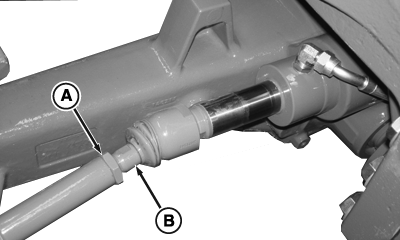

   PY14622-UN-02JUN12

   Left-Hand Side Shown

   A - Jam Nut

   B - Inner Rod

   Loosen jam nut (A) on right and left-hand side tie rod.

---




2. Adjust each side by rotating inner rod (B) to lengthen or shorten tie rod as needed, to obtain toe-in of no more than 3 mm (1/8 in.).

3. Tighten jam nuts after adjustment.

   Item	Measurement	Specification
   Tie Rod Jam Nut	Torque	328 to 363 N·m (242 to 267 lb-ft)
