Implement/Trailer Outlet with Flood Light Connector

LV15505-UN-05MAR12

RW21249A-UN-29APR99

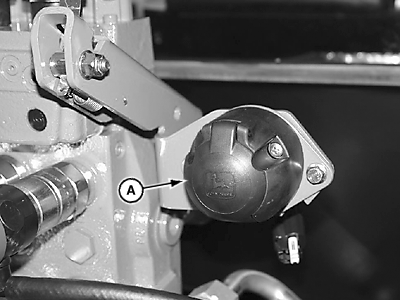

A - Implement/Trailer Outlet

Outlet (A) is used to connect lights, turn signals, and remote electrical equipment on trailers or implements. Always use auxiliary light on towed implement when tractor lights are obscured.

If implement harness is properly wired and connected to outlet, implement lighting operates in conjunction with tractor warning and signal lights.

NOTE: Matching plug is available through your John Deere dealer.

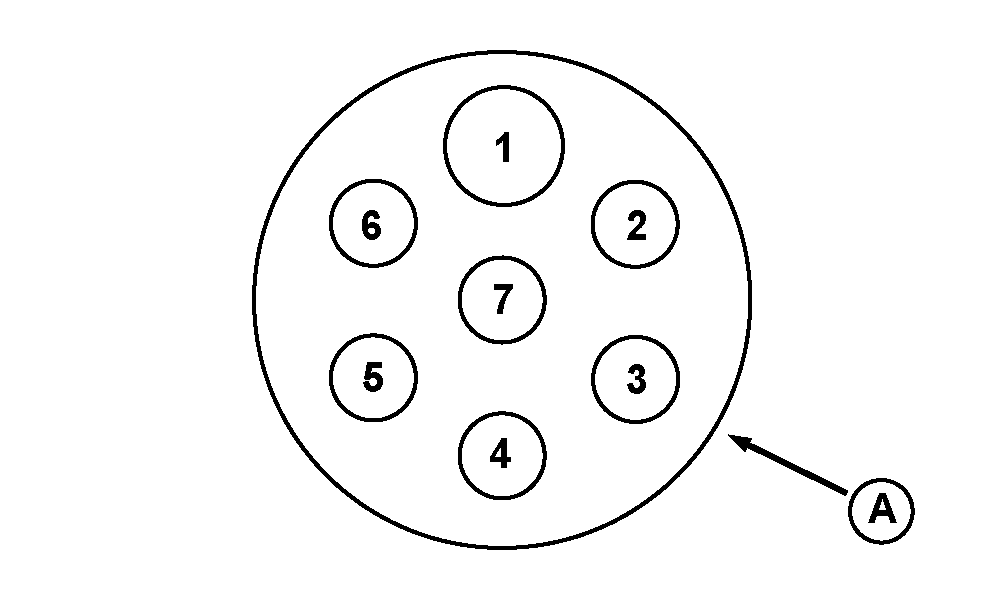

Terminal	Function
1	Left Turn
2	Auxiliary Power
3	Ground
4	Right Turn
5	Right Tail Light
6	Brakes
7	Left Tail Light
