Use Seat Belt

Open Operator Station (OOS) Tractor

LV21338-UN-12MAR14

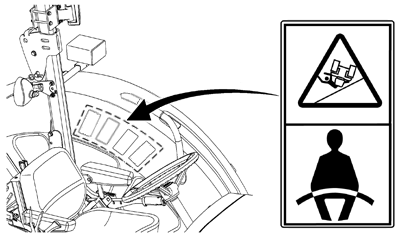

Left-Side Fender—OOS

Use Foldable ROPS and Seat Belt Properly

CAUTION: Avoid crushing injury or death during rollover.

• This machine is equipped with a foldable rollover protective structure (ROPS). Keep the ROPS in the fully extended and locked position. USE a seat belt when you operate with a ROPS.
  • Hold the latch and pull the seat belt across the body.
  • Insert the latch into the buckle. Listen for a click.
  • Tug on the seat belt to make sure that the belt is securely fastened.
  • Snug the seat belt across the hips.
• If this machine is operated with the ROPS folded (e.g., to enter a low building), drive with extreme caution. DO NOT USE a seat belt with the ROPS folded.
• Return then ROPS to the raised, fully extended position as soon as the machine is operated under normal conditions.

Cab Tractor

LV23365-UN-08OCT14

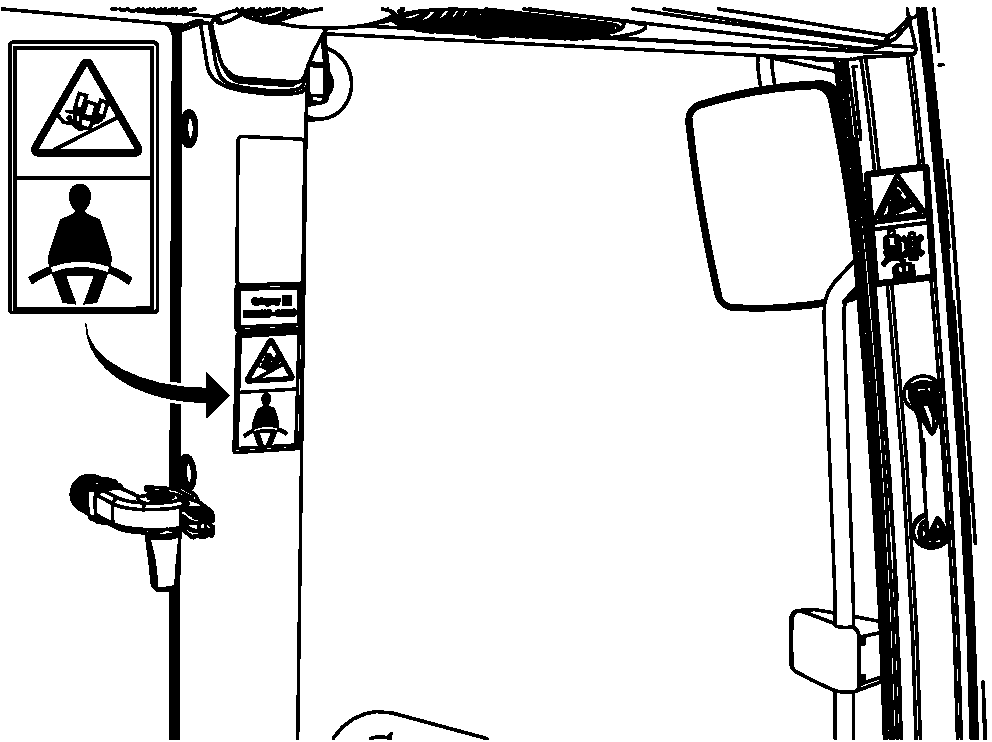

Left-Side Pillar—Cab

Use Seat Belt Properly

CAUTION: Avoid crushing injury or death during rollover.

• This machine is equipped with a rollover protective structure (ROPS). USE a seat belt when you operate with a ROPS.
  • Hold the latch and pull the seat belt across the body.
  • Insert the latch into the buckle. Listen for a click.
  • Tug on the seat belt to make sure that the belt is securely fastened.
  • Snug the seat belt across the hips.
