Position Center Link

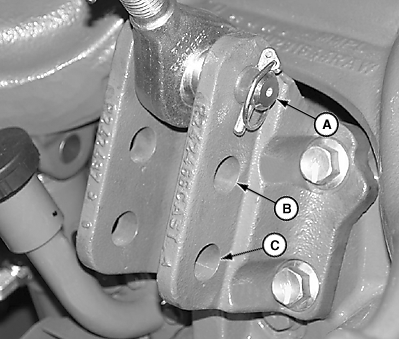

LV14569-UN-04AUG11
Positioning Center Link

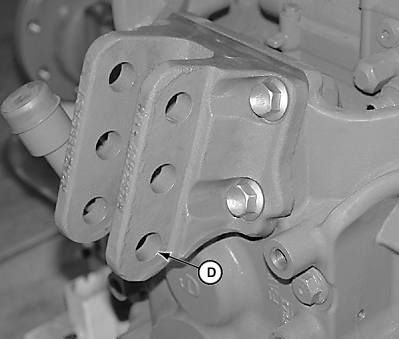

LV14570-UN-04AUG11
Bracket Inverted
A - Upper Hole
B - Middle Hole
C - Lower Hole
D - Lowest Hole (with center link bracket inverted)
The center link attaching bracket has holes which allow four different positions for attaching the center link.NOTE: Center link attaching bracket can be inverted to provide hole position (D).
If the following conditions occur, move center link to indicated holes to correct.
|
Condition |
Use Holes |
|---|---|
|
Rear of implement rises too much when lifted. 1 |
A or B |
|
Rear of implement drags the ground. |
B or C |
NOTE: Implements with Category I mast height 457 mm (18 in.) normally use attaching holes (C and D), and implements with Category II mast height 483 mm (19 in.) use holes (A and B).
| Item | Measurement | Specification |
| Center Link Cap Screws | Torque | 320 N·m (236 lb.-ft.) |
|
1 The implement weight which can be lifted is
reduced slightly with center link attachment in lower holes.
|
GS25068,0001A32-19-20150611 |
