Adjust Seat—Air Suspension (If Equipped)

LV22464-UN-16JUL14

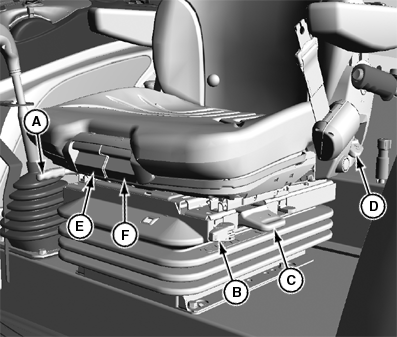

Air Suspension Seat

LV22465-UN-16JUL14

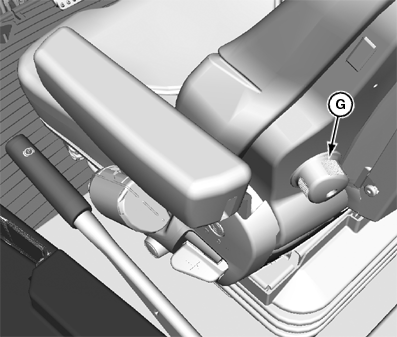

Lumbar Adjustment

A - Forward-Backward Adjustment Lever

B - Forward-Backward Suspension Adjustment Lever

C - Weight Adjustment Lever

D - Backrest Tilt Adjustment Lever

E - Cushion Position Lever

F - Cushion Position Lever

G - Lumbar Support Adjustment Knob

CAUTION: To avoid accidents, adjust seat before driving.

IMPORTANT: While adjusting seat, make sure that all controls are easily accessed.

Adjust to suit operator. Six seat adjustments are available:

Forward-Backward Adjustment

1. Lift forward-backward adjustment lever (A) up.
2. Slide seat to desired position.
3. To lock seat in position, release forward-backward adjustment lever .

Forward-Backward Suspension Adjustment

• Flip lever (B) forward for forward-backward suspension.
• Flip lever (B) rearward for NO forward-rearward suspension.

Weight Adjustment

1. Lift weight adjustment lever (C).
2. Reach desired suspension travel for operator weight. NOTE: When properly adjusted, suspension does not bottom out

3. Release weight adjustment lever to lock seat in position.

Backrest Tilt Adjustment

1. Lift backrest tilt adjustment lever (D).
2. Tilt backrest forward or rearward as desired.
3. Release backrest tilt adjustment lever to lock seat in position.

Cushion Position

1. Lift cushion position lever (E) to tilt up seat cushion.
2. Lift cushion position lever (F) to lower tilt of the cushion.

Lumbar Adjustment

Turn lumbar adjustment knob (G) to increase or decrease support to lower back.
